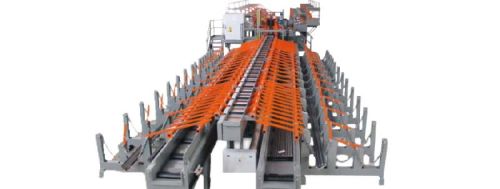

Bar Shearing Machine, Brand Name : YONGTUO

Technical advantages of ytq120ytq300ytq600:
.the machines are mainly for cutting the large diameter and high strength reinforced bar, process length standard, the size standard, it has the function of automatically cutting length and automatic sorting and saving.
.use the self-lubrication system to ensure reliable working condition.
.imported control system combined with touch screen interface, very easy for operation.
.equipped with horizontal automatic feeding device, feeding quick and convenient.
.automatic cutting hand-piece, which applies to cut wide range of steel rebar, can process several pieces or rebar in one time, and equipped with material head box, convenient for storing.
.mobile type free length fixing device, accurate length fixing system, to ensure the accuracy of length, it can fix any length.
.it provides a variety of different storage modes, can use single bin or multiple bins combination, increase the storage flexibility of steel bars.
Technical parameters of ytq120 ytq300ytq600
ytq120 ytq300ytq600 rebar shearing machine
model# ytq120 ytq300 ytq600
shearing frequency(timesmin) 12timemin 14timemin 16timemin
parting tool width(mm) 120mm 300mm 600mm
shearing length 600-12000mm 600-12000mm 600-12000
length tolerance 1mm
shearing capacity rebar diameter 12 16 25 32 36 16 20 25 32 40 50 16 20 25 32 40 50
rebar number 10 6 3 1 1 15 12 10 8 3 1 23 18 15 11 6 2
average power consumption 10kwh 14kwh 16kwh
