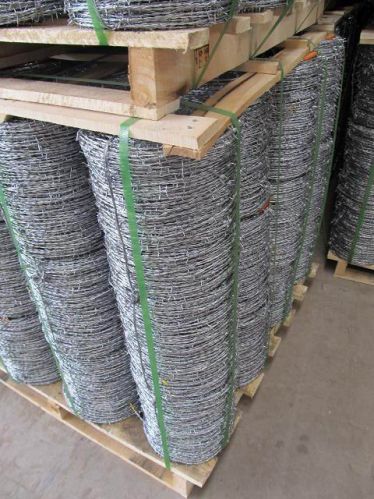

Barbed Wire, Elongation : 10 %

We are offering barbed wire
technology: wire as the core wire, the blade wrapped in a good punch on the core wire, once made
characteristic:strong protection and excellent intimidation ability ,easy to install , long life
shape:linear, cross-type, linear coil-type, cross-coil type
kinds: galvanized razor wire or stainless steel razor coils.
Uses: to border quarantine, military facilities, prisons, villa area, military bases, airports .etc
blade specification blade forms blade thickness core wire dia. blade length blade width blade space
bto-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
bto-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
bto-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
bto-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
bto-28 0.5±0.05 2.5 28 15 45±1
bto-30 0.5±0.05 2.5 30 18 45±1
cbt-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
cbt-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2
ex. Dia. no. Of turns standard covering length production model remarks
450mm 33 8m cbt-65 single coil
500mm 41 10m cbt-65 single coil
700mm 41 10m cbt-65 single coil
960mm 53 13m cbt-65 single coil
500mm 102 16m bto-12.18.22 cross type
600mm 86 14m bto-12.18.22 cross type
700mm 72 12m bto-12.18.22 cross type
800mm 64 10m bto-12.18.22 cross type
960mm 52 9m bto-12.18.22 cross type
