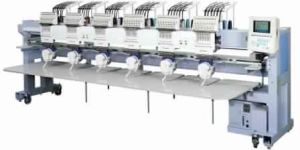

Barudan BEXY-C Series - Compact Embroidery Machine

 Barudan BEXY-C Series is a Compact Embroidery Machines with Radius Cylinder Arms.

FEATURES

• 12 or 15 needles.

• Radius cylinder arm designed for high quality cap embroidery.

• Industrial strength construction.

• Super quiet operation.

• Thread clamps holds thread in place to prevent pull outs.

• Automatic color change.

• Adjustable table allows quick and easy conversion between finished cap, tubular and flat goods.

• Variable sewing speeds of up to 1,000 stitches per minute. Can be adjusted to suit each individual application.

• Reads and stores most popular embroidery machine formats.

• Automatic return to origin.

• Digitally float to any stitch in a design.

• Digital stitch processing.

• Program jog movements.

• Outline trace allows you to trace the outline of a design to ensure proper placement of the design.

• Automatic speed control ensures optimum stitch quality.

• 1,600 stitch automend and stitch backup.

• Ability to update software from CF card.

• Backup disk of all patterns stored in memory can easily be created or restored with one simple command.

• Function List allows you to quickly and easily change color sequence in one screen.

• Easy-to-read oversized color LCD.

• Built-in 3.5" disk drive.

• Internal battery backup and origin reference allow you restart quickly and accurately even after a power failure.

• 10 million stitch capacity in 30 patterns.

• CF Card (CompactFlash™ Card) slot.

• Automatic thread break detector.

• Networking capabilities.

STANDARD MAECHANISM

Heavy Duty Zero-Flex Tubular Support Arms
Because our tubular arms are larger and stronger than the competition, you can expect higher quality results from
a Barudan machine. Completely eliminates sagging. Positive indexing of the frame to the support arm ensures
perfect registration at high speeds. Great for producing crisp, clean small lettering.

Barudan Framing System
Barudan embroidery starts with frames. Our double height frames are thick and sturdy to hold your garments
tightly and securely. Allows for quick and easy framing with less operator effort.

Radius Cylinder Arm Allows Unbeatable Cap Embroidery
Barudan's unique radius cylinder arm hugs the inside curve of the cap frame. Provides a smooth, even surface for
stitching. Reduces flagging and distortion. Use the same throat plate for all embroidery, no need to change plates
between jobs

Quick Change Artist
Switch from caps to tubular garments to flat goods in a matter of minutes. Can be completed by one person.
No tools needed. No needle plate replacements, pantograph of frame adjustments necessary.

Split Presser Feed Add to Ease of Threading
Super easy threading. One pass through the needle does it. Fast! Easy! Productive!

Individual Automatic Thread Clamping System
The smallest time-savers can mean dollars in your pocket. That's why each needle on a Barudan machine features
its own individual thread clamp. There's no need to manually move magnets to hold down threads during color
changes. Plus, there's less chance of both real and false thread breaks.

More Needles, More Colors, More Options
Barudan machines feature 15 needles. It's easier and faster to stitch those mega-color designs. Use the extra
space to keep standard colors on the machine for faster production time.

Simple Operation, Designed Especially for Embroidery
The electronics on all Barudan machines are specifically designed for embroidery. there's no off the shelf "sewing
machine" technology. A user-friendly, icon-based automat controls each machine. Preview designs before
stitching begins. Easy-to-understand and easy-to-use.
Simply, push a few buttons and the machine does the rest.
