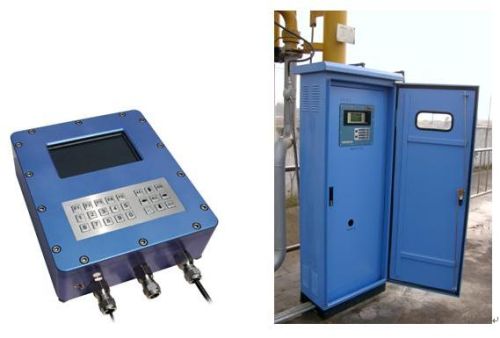

Batch Controller

MOQ1 Set(s)
Display screen7" TFT color screen
2 analog inputscollecting temperature and density
Supply voltageAC 220V or DC24V
14 discrete inputsfeedback signals of pump and valve
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Operating temperatureNormal: -20~60 degree; Wide: -40~70 degree
2 RS485 buscommunication of a PC or other instruments
Quantity of oil dispensed999,999
Explosion proof classExd(ib)IIBT6
1 analog outputcontrolling transducer and adjusting valve
10 discrete outputscontrolling pumps and valves
Display screen7" TFT color screen
2 pulse signal inputsVp-p>=2V, frequency <=30 KHz
2 analog inputscollecting temperature and density
14 discrete inputsfeedback signals of pump and valve
Supply voltageAC 220V or DC24V

We are offering batch controller.
Introduction
with siemens s7-200 plc as a master controller, xy600 batch controller is presetting precision control equipment used in petroleum, chemical and food industry, etc. This controller is suitable for the batch control system comprising of a flow meter with pulse output, or a weighbridge with rs485 output, thermometer transmitted under 4-20ma, control valves(including the solenoid valves, multi-stages control valves or regulating valves), as well as the oil spillage electrostatic protection device. Utilizing advanced plc technology, the device provides flexible and easy-to-learn programming methods so that the users may choose options suitable for their needs to form various functions, therefore completing precision batch loadingfilling control of the materials.
Features
* real-time massvolume, flow, temperature, density and time display
* operating mode: online or offline
* password verification function: including the password of the operators and the password of the system administrator
* has the function of protection of data upon loss of power and continuing the original working point once the power supply is resumed
* has the interlock control function of protection against electrostatic and oil spillage
* accurate control electromagnetic valves, two-stage valves, and regulating valves, etc.
* interlock control function of the pump and valve
* mixing control: control online proportional mixing of the fluids accurately
* temperature compensation function (linear, gbt1885-1998 or api standard)
* automatic conversion function of massvolume delivered
* flow coefficient overshoot setting
* self-diagnosis test
* anti-surge protection
basic type
* xy600a: used for single truck loading single filling tube
* xy600b: used for double truck loading double filling tube
* xy600c: used for multiple truck loading system multiple filling tube
