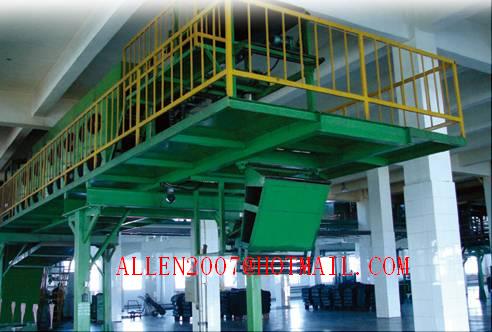

Batch Off

We offer batch off line.
Main parameters batch off line xpg-600 ~ 700 xpg-800 ~ 900
available slab specification (4-12 )x600 ~ 700 ( 4-12 ) x 800 ~ 900
front take-away conveyor belt max linear velocity 40m /min 40m /min
rubber strip hanging bar moving speed 0.117 -2.2m /min 0.117 -2.2m /min
axial fan 0.37kw 5760m 3 /h 0.37kw 5760m 3 /h
swing and frequency 1.3m 10-16 times /min 1.3m 10-16 times /min
rubber strip temperature after cooling ≤room temperature+ 5 degree ≤room temperature+ 5 degree
speed-a djusting motor of lifting device xwd1. 5-3-1 /11 xwd7. 5-7-1 /43
speed-a djusting motor of wig wad device xwd1. 5-3-1 /11 xwd1. 1-5-1 /87
rubber bar pitch 160 or 101.6 160 or 101.6
max hanging height of rubber strip 1400mm 1400mm
