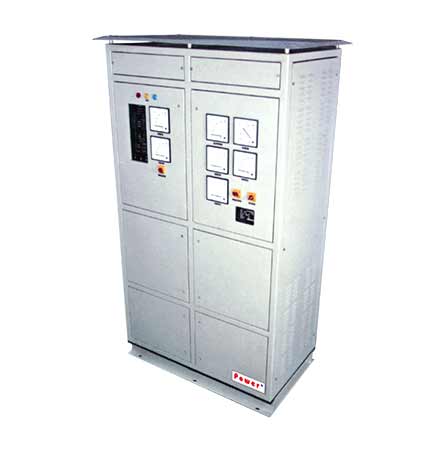

Power plus battery charger provides quiet, reliable and adjustable dc power to batteryload. The battery charger gives dc output, the input source being singlethree phase ac supply only. The load is isolated from any spikes, surges or dips.
Salient features
1. Fully automatic electronic scr controlled
2. Soft start feature to minimize inrush current to battery when
charger is re-energized
3. Dropper diode regulator in load path for specific applications
4. In general, the system conforms to iec 146 and is-4540 standards
5. Battery path current limiting
6. Output short circuit proof
7. Automatic float boost change over
8. Operation under reverse input phase sequence
