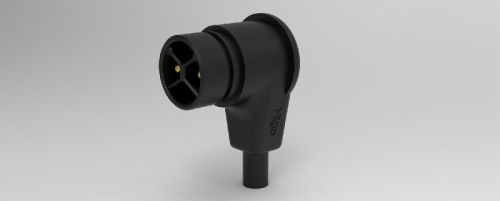

BATTERY CONNECTOR 2+4 48V
Â
Electrical Characteristics
Rated Voltage
48V AC
Rated Current
Power 25A/45A,Signal 5A
Withstanding Voltage
500V
Insulation Resistance
≥20MΩ
Contact Resistance
≤10mΩ
Mechanical Characteristics
Mating Type
Insertion Force 80N Max, Extraction Force 30N Min
Mating Cycles
3000Times
Performance
Operation Temperature
-25�~+80�
Protection Degree
IP67
Wires Specification
Max Outer Diameter
24mm
Mating Length
70mm
Contact Material
Copper alloy plated with sliver which conforms to military standard
Wire Section
0.34mm²+ 4.0mm²
IP67 Industrial Battery Connector, ROHS Battery Connector, Copper Alloy Battery Connector
Higo is a China supplier of IP67 industrial battery connector, Our products have the features of dustproof and waterproof, IP67 Splitter Connector, Environmental Materials Signal Connector, Dustproof Waterproof Signal Connector and passed ROHS and REACH certification, Our products and services will make you satisfied.
