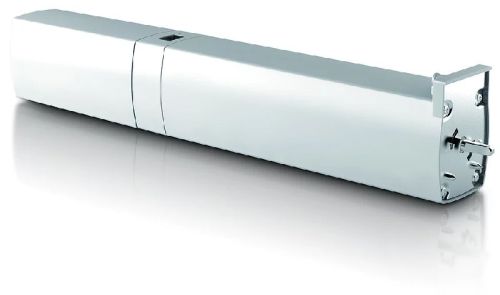

Battery Curtain Motor

• Length : 385 mm

• Input :12 V DC
• Current :0.98 A
• Power: 12 W

• Torque : 1.2 Nm
• Speed : 98 rpm
• Maximum Load Capacity: 50 kg

• Overheat Protection :0-500
• Weight :1.4 kg
• Radio Frequency Technology :RTS-Built-in Battery
• Protection Standard : IP40

Super quiet design: Noise from friction and internal vibrations are kept to below 30dB through intelligent engineering and precision manufacturing.

Smooth Operation: The motor accelerates and decelerates gradually when starting and stopping respectively. This allows the curtain to open and close gracefully.

Smart Limits/Auto-calibrating Limits: The motor automatically detects and sets the limits of the curtain when it’s first installed. This also allows it to calibrate and maintain the precision of the limits with every open and close.

RF Remote Control: The motor has integrated radio reciever which is compatible with all series of Fujikawa Japan emitters, which allows both individual and group control.

Obstruction Protection: If the curtain is pulled or obstructed while the motor is running, the curtain motor will automatically stop in order to protect the curtain and the motor.

Touch motion (Drag-to-open): Pulling the curtain gently will trigger the motor to open/close automatically.

Manual Operate: The curtain automatically switches to Manual Mode when there is a loss of power. In this mode the curtain can be dragged to open and close.

Home automation compatibility: The motor is compatible with most dry-contact systems and RS232/S485, IR etc.

Note: Always check with an authorised Fujikawa Japan motors distributor to verify compatibility

Heavy Duty accessories: The Heavy-duty curtain belt has been designed to perform for at least 15,000 cycles, which equals 20 years service life at minimum based on an average use of two cycles per day
