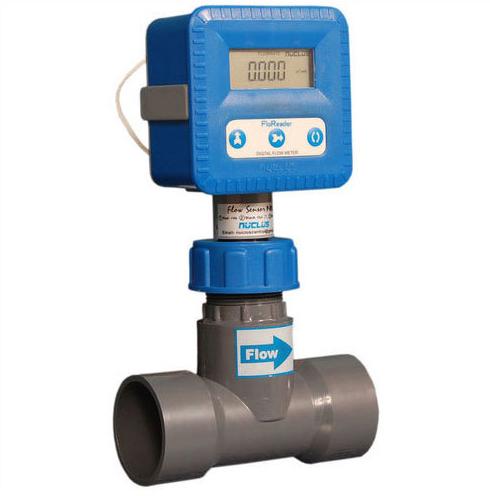

Battery Operated Flow Meter

Battery Powered Flow meter

Flo Reader program of battery-operated water meters gives you the flexibility to install a reliable water flow meter virtually anywhere without sacrificing accuracy or performance. No mains power is required. Flo Reader engineered for stand-alone water applications such as Water treatment, distribution network, irrigation, etc.

SPECIFICATIONS:

Function  : flow Rate indicator Indicator & totalizer
Flow Rate Range    :0.5 to 5 m/s (1.6 to 16.4 ft./s)
Pipe Size Range    :15 NB to 300 NB (0.5 to 12 in.)
Display    :7 digit numeric customize LCD display
Input Supply:2 X 1.5 VDC Duracell battery
Accuracy    :± 2.5% of full scale deflection
Meter size:96 mm x 96 mm X 85 mm
Protection Rating  : IP 65 ( weather proof enclosure )
MOC: ABS for enclosure & PP for sensor
Operating Pressure :5 bar(145 psi) maximum
Operating Temperature:55° C maximum

FEATURES

• Proven technology
• Economical
• Totalizer function
• Easy Installation & calibrations
• No Special batteries required
• Modular construction
• Can be mount Horizontally / Vertically
• Can be rotate display 360
