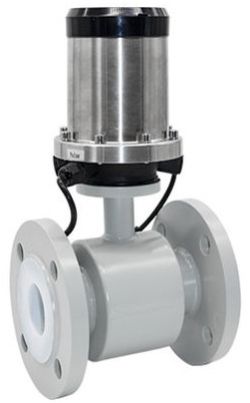

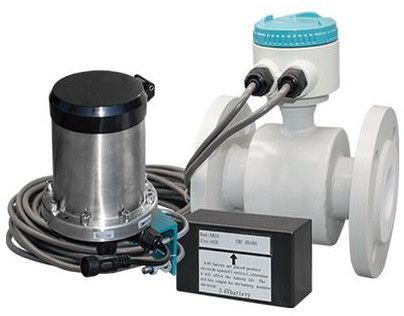

Battery Powered Electromagnetic Flow Meter

Battery-powered magnetic flow meter can be used in remote area where don’t have power grid . It is widely used for all conductive liquids in every industry, such as water, acid, alkali, milk, slurry etc. Since founded in 2005, CBRO has been focused in magnetic flow meter manufacturing for more than 15 years. More than 600 thousand mag meters had been provided to clients all over the world for different work conditions.

Advantages :-

Battery Powered Electromagnetic Flow Meter Advantages and Disadvantages

has a long life span, standard battery can work for 3-6 years, determined by the excitation current

2.Dual power supply: it’s equipped with external power supply interface, which

can be powered by external 12-24vdc power supply, enabling users to have a variety of power options;

3. Multiple network interfaces: W803 has GPRS, RS485, HART and other network communication for users;

4.Multiple work mode: W803E has ‘Flow Only’ mode, ‘Flow + Pressure’ mode, ‘Flow + Temperature’ mode for users.

Application :-

Electromagnetic flow meter is widely used in water treatment, food industry, pharmaceutical, petrochemical, paper mill, chemical monitoring etc.

In the metallurgical industry, it is often used to control the flow of cooling water for continuous steel casting, continuous steel rolling, and steel-making electric furnaces; In the field of water supply and drainage in public utilities, electromagnetic flow meters are often used for the transfer measurement of finished product water and raw water in water plants; In the pulp process of the paper industry, electromagnetic flow meters are involved in the measurement of the flow of grinding pulp, water, acid, and alkali;  In the coal industry, measuring coal washing and pipeline hydraulic conveying coal slurry.

For food and beverage industries, it is used for and beverage filling measurement.

For chemical and petrochemical industries, it is used to measure corrosive liquids, such as acids and alkalis etc.

Installation :-

Battery Powered Electromagnetic Flow Meter Installation Requirement

In order to obtain a stable and accurate flow measurement, it is very important that the flow meter is installed correctly in the pipe system.

Do not install the meter near equipment that produces electrical interference such as electric motors, transformers, variable frequency, power cables etc.

Avoid locations with pipe vibrations for example pumps.

Do not install the meter close to pipeline valves, fittings or impediments which can cause flow disturbances.

Place the meter where there is enough access for installation and maintenance tasks.
