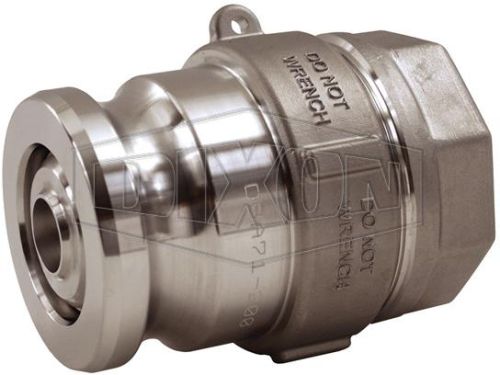

Bayloc Dry Disconnect Adapter X Female NPT

Part Number DBA67-150
Description Cam & Groove Style
Material Aluminum
Seal PTFE Encapsulated FKM
Female Thread NPT
Female Thread Size 1-12"
Adapter Size 2"
Maximum Operating Pressure 210 PSI at 70°F(21°C)
Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
Use
Use with DBC or D2C style couplers
Use with standard cam and groove dust caps sized one size larger than the dry disconnect size
Use Cam & Groove Dust Cap Size: 2"
Features
Two-piece adapter design for easy rebuilding of adapters
