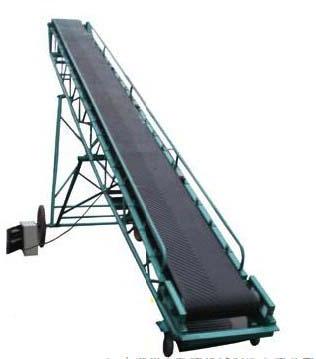

Bc Standard Belt Conveyor System

We are offering bc standard belt conveyor system.
this series of belt conveyor is widely used to convey the loosen materials and part materials in the field such as mine, metallurgy, coal etc. It has the advantage of big capacity, simple structure, easy maintenance, standard parts etc. As per transmission requirement, it can be applie solely as well as be applied together with other belt conveyors.
(1) process flow:
according to process flow requirements, belt conveyer's function is very flexible from one or more points. And also be expected to more or segments discharging. When the belt is fed from several points (such as the conveyor belt conveyor under coal warehouse in coal factories) or be fed at any point by feeding equipments, belt conveyor becomes a main transportation route.
belt conveyor in coal factory can get materials from the tunnel under coal storage site, if necessary, it can put the pile of different raw material mix. Materials may be discharged simply from conveyor head.
(2) structure:
a frame: our standard u-shape channel steel (option: steel truss frame with bigger strength)
b belt: our standard 5-layer rubber belt. Smooth belt or pattern belt
c landing leg: made in site. Channel steel or steel pipe
d overhaul aisle: made in site. One side or two side
e head feeding hopper: one feeding hopper for one belt conveyor
f mobile belt conveyor: option. tripod , 4 wheels
g installation angle: 0-25 degree. Pattern belt for 20-25 degree
(3) features and benefits:
1 simple structure, low noise, reliable operation.
2 strong and flexible conveyor line, high efficiency.
3 consists of standard parts, reliable quality.
4 installation degree is adjustable.
