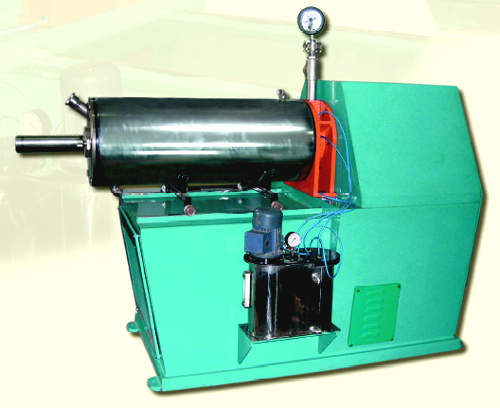

Bead Mill

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We offer Horizontal Bead Mills that are sturdy in design and are known for their trouble free performance. The constructions of our horizontal bead mills are high wear resistant. A water-cooled....

View More Details

Send Enquiry

Company Information

FLUIDTECH ENGINEERS

Guindy, Chennai, Tamil Nadu

View Number

Member Since 19 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We offer Horizontal Bead Mills that are sturdy in design and are known for their trouble free performance. The constructions of our horizontal bead mills are high wear resistant. A water-cooled Grinding Chamber and Frequency Inverter Drive for Pump are also attached with horizontal bead mills. These mills have Mechanical Shaft sealing and Multiple Gap Cat-ridge Screen Media Separator. Automatic Safety interlocks for excess temperature & excess Pressure are also available in our horizontal bead mill.

Gear Pump
	Screw pump
	Air operated Diaphragm Pump
	Flushing pump for quick colour changing
	Flame proof motors & controls
	Mechanical seal construction to suit applications
	PLC process controls

Mill Model	FEATTO-6	FEATTO-10	FEATTO-18	FEATTO-25	FEATTO-40
Effective Volume (LTR)	7	11	18	25	40
Throughput Capacity (LTR/HR )	25-80	40 -130	65 -200	90 -300	150 -450
Dimensions in meters L/H/W	1.1/1.0/1.1	1.5/1.1/1.2	2.2/1.5/1.6	2.6/1.6/1.9	2.8/1.6/1.9
Weight in KG	600	750	900	1100	1200
Power Rating (HP)
Agitator	7.5	12.5	25	30	40
Feed Pump	1.0	1.0	2.0	2.0	3.0
Flushing pump	1.0	1.0	1.0	1.5	1.5
