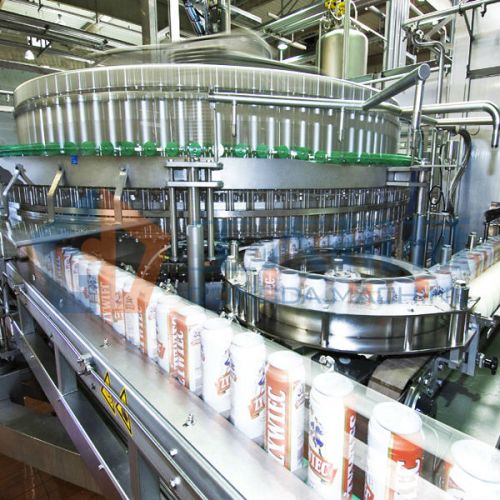

Beer Can Sealing Machine

we are offering can sealing machine. it adopts isobaric filling principle and filling valve adopts high precision mechanical valve. it has advantages of fast filling speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. float switches in the filling cylinder ensure a smooth liquid inlet.
the main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high efficiency, low noise and smooth operation. it adopts frequency conversion stepless speed regulation and is controlled by plc industrial computers. sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a same working pace.
as to sealing machine, it adopts seal-capping rollers and pressure heads designed by ferrum switzerland company processing technology to ensure can sealing quality. the machine has the controlsystem that caps only come down when there are cans and caps will not come if there is no can below to ensure the machine run normally and reduce the
cover loss rate.
technology parameter:
model: gd-204
production capacity: 12000canshour
can diameter: φ52.3`φ98.9mm
can height: 68~160mm
power: 4kw
air consumption: 1m3h
