Bel SI-61031-F 1 Port RJ45 Modular Jack Connectors Through Hole 10/100/1000 Base-T, AutoMDIX

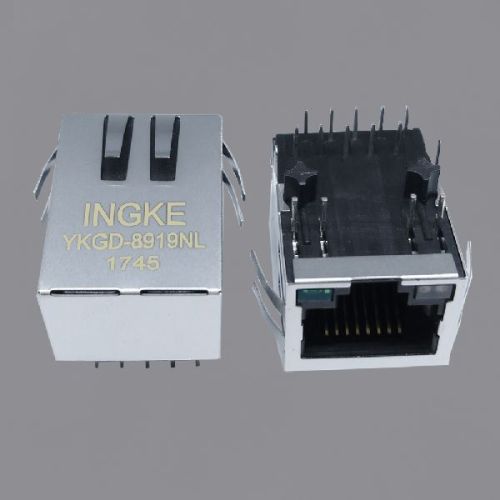

Ingke YKGD-8919NL Direct Substitute Bel SI-61031-F 1 Port RJ45 Modular Jack Connectors Through Hole 101001000 Base-T, AutoMDIX
Part Number : SI-61031-F
Made in China:YKGD-8919NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCSMonth
Packaging :Tray
Connector Type: RJ45
Number of Ports :1
Number of Rows :1
Applications : 101001000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation: 90°Angle(Right)
Termination :Solder
Height Above Board: 0.560" (14.22mm)
LED Color: Green, Orange - Green
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features: Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Contact Finish Thickness : 30µin (0.76µm)
Shield Material : Copper Alloy
Housing Material : Thermoplastic
Ingke Technology Mass production of the following models;
SI-60082-F SI-60124-F SI-50151-F SI-50193-F SI-50080-F 0845-2D1T-S4 0845-2G1T-H6 SI-26001-F SI-30039-F SI-30113-F SI-30135-F SI-46008-F SI-46009-F SI-46012-F SI-46017-F SI-46019-F SI-50065-F SI-50076-F SI-50089-F SI-50096-F SI-50107-F SI-50109-F SI-50113-F SI-50124-F SI-50125-F SI-50139-F SI-50141-F SI-50156-F SI-50161-F SI-50164-F SI-50174-F SI-50179-F SI-50184-F SI-50186-F SI-50189-F SI-50194-F SI-50195-F SI-50199-F SI-50201-F SI-50205-F SI-50207-F SI-50210-F SI-50211-F SI-50212-F SI-50214-F SI-50219-F SI-50223-F SI-50224-F SI-50237-F SI-51014-F SI-51015-F SI-51021-F SI-52004-F SI-52005-F SI-52006-F SI-55003-F SI-55004-F SI-60006-F SI-60019-F SI-60029-F SI-60065-F SI-60066-F SI-60073-F SI-60074-F
