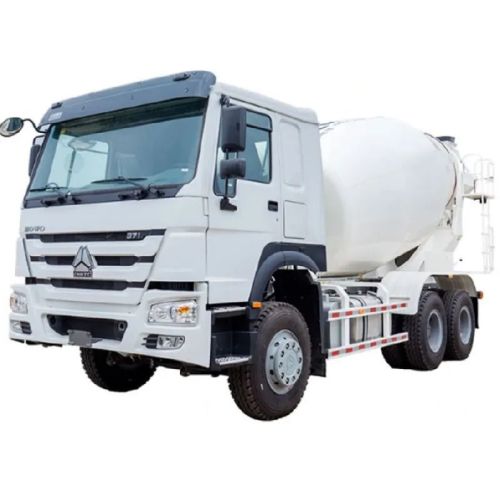

Pneumatic Semi Automatic Below 6m³ Truck Mixer for 99

Vehicle parameters

Vehicle Model

EHY5250GJBFB404

Vehicle Brand

HUAYI

Overall dimensions

10450X2495X3950mm

Curb weight

16000kg

Loading capacity

12m3

Chassis parameters

Chassis model

SX1250FB

Chassis brand

SHACMAN

Overall dimensions

8600x2495x3270mm

Wheel base

3975+1400mm

Front/rear wheel track

2011/1860/1860mm

Front/rear suspension

1525/1700mm

Approach/departure angle

18/11°

Maximum speed

99km/h

Chassis Manufacturer

Shanxi Automobile Group Co., Ltd.

Cab

Configuration

F3000 half cab(with sleeping berth),allowable 3 passengers

Color

White,other color is optional

Engine

Model

WP10.336E53

Emission

Euro 5

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,direct injection, exhaust valve brake,diesel engine

Rated power

336hp,rated power speed 1900rpm

Displacement

9726ml

Bore x stroke

126x130mm

Manufacturer

Factory

Tire

Size

12.00R20 steel wire tire

Number

10+1 nos

Clutch

φ430 diaphragm clutch

Fuel tank

400L Aluminum fuel tank

Front axle

7.5 tons

Rear axle

16.0 tons STR rear axle

Drive form

6X4

Rated voltage

24V,DC

Transmissions

Gearbox RTD11509C, 9 speed forward 1 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above,please take the actual product as the standard
