Motor Belt Conveyor – 9 Mtr. (30’), Brand Name : Estovir

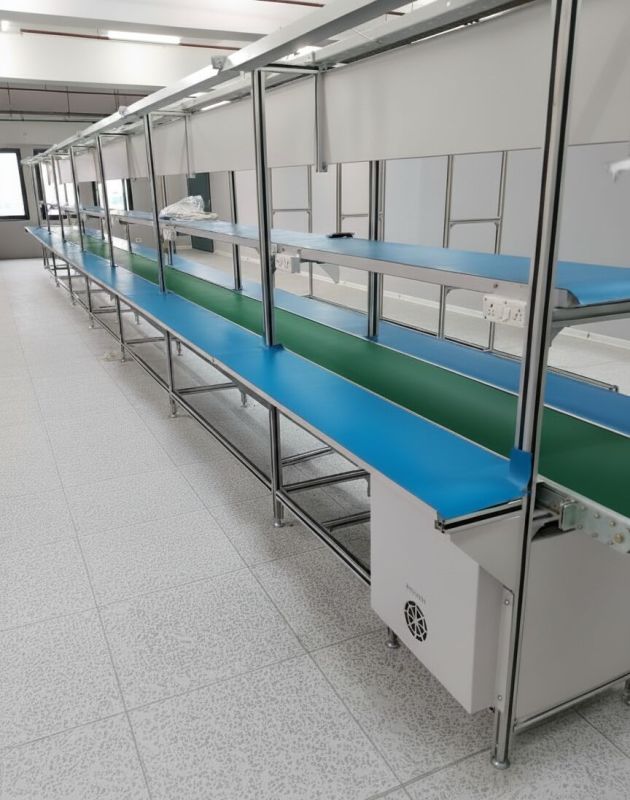

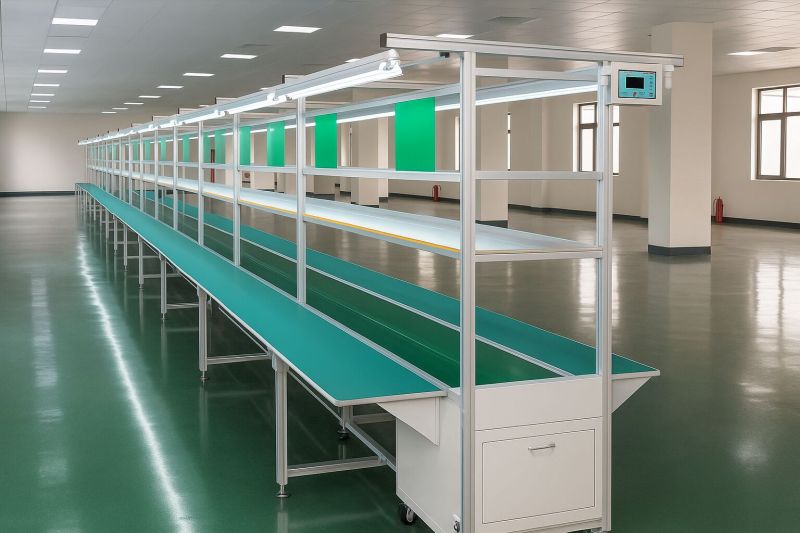

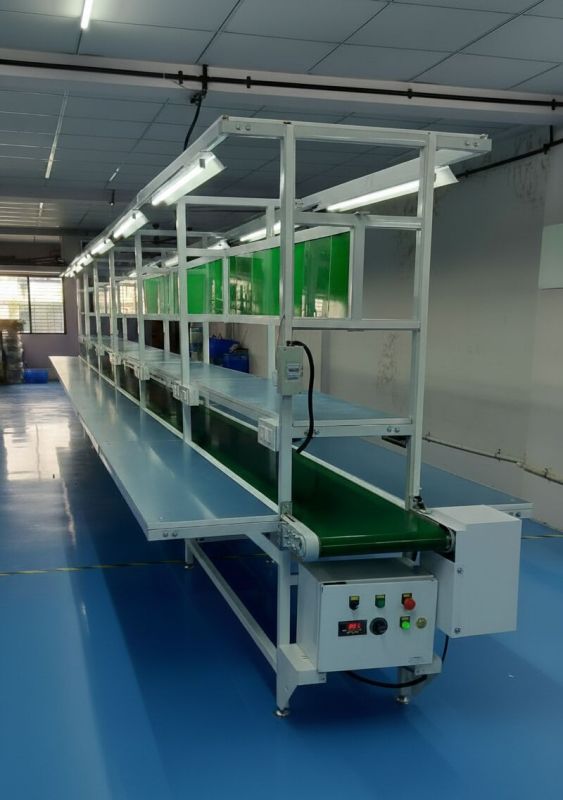

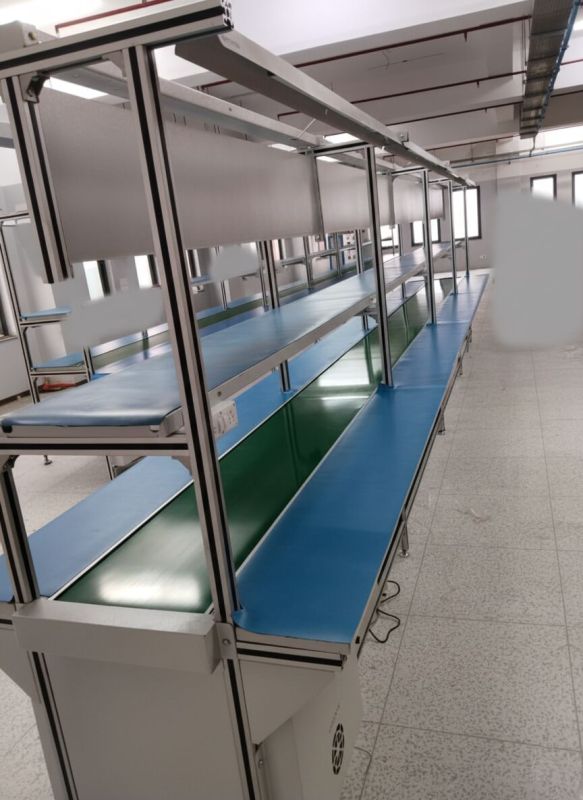

Belt Conveyor – 9 Mtr. (30')

Overview

The Belt Conveyor by Estovir Technologies is a high-performance, dual-sided, fully customizable transport system designed for PCB assembly lines, electronic component handling, and multi-stage integration. Built with a durable aluminium or powder-coated steel structure, it ensures efficiency, reliability, and ergonomic design for modern electronics manufacturing.

With a 9-meter double-sided working (customizable) and variable speed control (2–6 M/min), this conveyor ensures smooth, safe, and efficient transfer of PCBs and electronic components through soldering, inspection, testing, and packaging stages. Its ergonomic working height (850 mm ±25 mm) reduces operator fatigue, while the anti-static ESD worktop safeguards sensitive electronics.

Key Features

High Efficiency & Dual-Sided Operation

• Transfers PCBs/components on both sides, doubling throughput.
• Supports multi-stage integration with SMT/PCB machinery.

Durable & Robust Construction

• Aluminium profile (40×40) or powder-coated steel for corrosion resistance.
• 300 mm MS sheet with ESD mat for stable assembly.

Ergonomic & Operator-Friendly

• Fixed ergonomic height (850 mm ±25 mm).
• Reduces fatigue during soldering, inspection, or assembly.

Adjustable Speed & Precision Control

• VFD panel for speed control (2–6 M/min).
• Compatible with soldering, inspection, or testing stations.

Accessories & Safety

• LED tube lighting (without wiring).
• Steel display board for drawings.
• 2 Switch & 2 Socket box per 6 ft. section.
• Non-flammable, wood-free build for fire safety.

Customization Options

The Belt Conveyor is fully customizable for different production needs:

• Length & Height – From compact to extended multi-meter lines.
• Working Width & Belt Size – Adjustable for various PCB/component sizes.
• Structure Options – Aluminium profile or powder-coated steel pipe.
• Socket Configuration – Flexible placement and setup.
• Lighting Integration – LED tube lighting (with/without wiring).
• Exhaust Fans & Airflow – Optional cooling/ventilation for heat-sensitive areas.
• Accessories – Display boards, shelves, and tool sliders.

With these options, the conveyor becomes a tailor-made solution for your assembly line.

Installation & Support

• On-Site Installation & Calibration – Professional setup as per layout.
• Operator Training – Safe, efficient operation guidance.
• Preventive Maintenance – Scheduled servicing for uptime.
• Spare Parts – Genuine parts with quick delivery.
• After-Sales Support – Responsive team for troubleshooting and upgrades.

Applications

• PCB Assembly Lines – Smooth flow through soldering, inspection, and packaging.
• Component Handling – Safe transfer of delicate electronics.
• Multi-Stage Integration – Works with pick-and-place, AOI, reflow ovens.
• Ergonomic Workstations – Easy operator access at waist height.

Why Choose Estovir Belt Conveyor?

• Dual-Side Operation – Boosts productivity.
• Ergonomic Design – Reduces operator fatigue.
• Durable & Reliable – Long-life aluminium/steel build.
• Safe for Electronics – ESD-safe design protects components.
• Customizable – Lengths, widths, and add-ons to fit any line.
• Trusted Brand – Backed by Estovir Technologies' expertise in automation.
