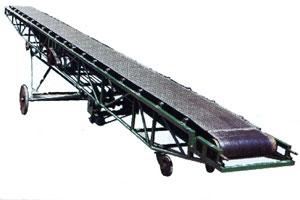

Shenzhen Yuhan Electro Belt Conveyor

We are offering belt conveyor.
1,it is used to transport loose materials or cartons.
2,its material is stainless steel
3,it can achive automatic operation

1. Describtion of belt conveyor

belt conveyor works according to friction transmitting principle, it is widely used to convey bulk materials in mine, metallurgy, coal, traffic, water and electricity, etc. It has the features of large conveying capacity, simple structure, easy maintenance, low consumption



2. Belt conveyer features:
1. large conveying capacity.
2. noise reduction.
3. simple structure.
4. easy maintenance.
5. energy-saving and low cost.
(the following points should be pay attention to: the belt conveyors can be operated in the circumstance temperature range from -20°c to +40°c. The temperature of transferred material by this belt conveyor should be lower than 50°c.)



3. Working principle of belt conveyer

the motor drives the driving rollers of the belt conveyor, and drives the roller by the strong belt advances. Materials are conveyed from the original place to the place where they are needed.



4. Technical parameters of belt conveyer



belt width (mm)
length (m) / power (kw)
conveying speed

(m/s)
capacity (t/h)

400
≤12/2.2
12-20/2.2-4
20-25/3.5-7.5
1-2.0
30-60

500
≤12/3
12-20/3-5.5
20-30/5.5-7.5
1-2.0
40-80

650
≤12/4
12-20/4-5.5
20-30/5.5-11
1-2.0
80-120

800
≤10/4
10-15/4-5.5
15-30/5.5-15
1-2.0
120-200

1000
≤10/5.5
10-20/5.5-11
20-40/11-22
1-2.0
200-320

1200
≤10/7.5
10-20/7.7-15
20-40/15-30
1-2.0
300-480






























belt width(mm)
belt length (m) / power (kw)
belt speed (m/s)
capacity (t/h)

500
≤12/3
12-20/4-5.5
20-30/5.5-7.5
1.3-1.6
45-90

650
≤12/4
12-20/5.5
20-30/7.5-11
1.3-1.6
70-120

800
≤10/4
10-15/5.5
15-25/7.5-15
1.3-1.6
120-180

1000
≤10/5.5
10-20/7.5-11
20-25/11-22
1.3-2.0
160-250

1200
≤10/7.5
10-20/11
20-25/15-30
1.3-2.0
200-400




we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:



stone production line:

including:

jaw crusher

impact crusher

cone crusher

hammer crusher

vibrating screen etc



sand making production line:

including:

jaw crusher

sand making machine (vsi crusher)

ball mill

cone crusher

hammer crusher

sand washing machine

vibrating screen etc



we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
