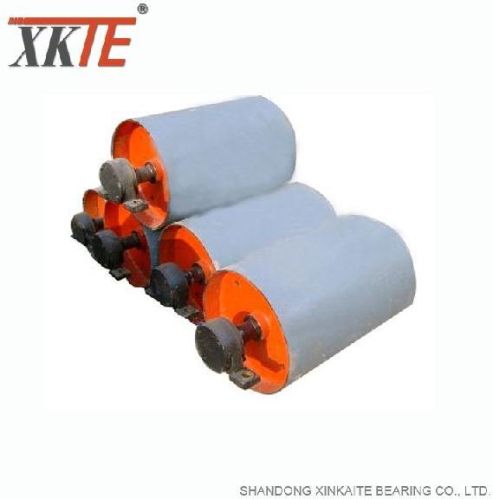

Contact SupplierDriving pulley is the main part for transmitting the power : smooth surface and rubber surface, and rubber surface can be classified into smooth rubber surface, herringbone rubber surface and diamond rubber surface to meet different technical requirements. drive pulley has power applied to it and anidler is a pulley that has no power. to keep proper tension on the conveyor belt the pulley, which is called the take up pulley, is weighted. The bend pulleys are called that because the belt bends over them to form a loop for the take up pulley to sit in. Size: belt width length pulley diameter thickness 300mm 400mm 200 ,250 ,315 ,400 mm 6-12mm 400mm 500mm 200 ,250 ,315 ,400 ,500 mm 6-12mm 500mm 600mm 200 ,250 ,315 ,400 ,500 ,630 mm 7-14mm 650mm 750mm 200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 mm 8-18mm 800mm 950mm 200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 ,1250 ,1400 mm 8-18mm 1000mm 1150mm 200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 mm 10-18mm 1200mm 1400mm 200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 mm 10-18mm 1400mm 1600mm 200 ,250 ,315 ,400 ,500 ,630 ,800 ,1000 , 1250 ,1400 mm 12-18mm 1600mm 1800mm 200 ,250 ,315 ,400 ,500 ,.
