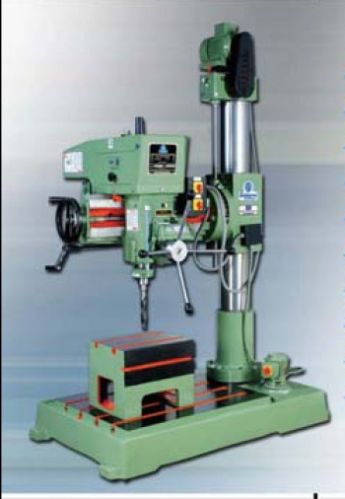

Belt Drive Auto Feed Radial Drill

₹ 1.63 Lakh / Piece

MOQ1 Piece(s)
MaterialM.S. C.I.
Number Of FlowerRadial Drilling Machine
PackagingWooden Case 1250 X 1550 X 2000 Mm
Column Diameter165 Mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.4/5

Member Since 13 Years
Nature of Business Manufacturer
GST No. 24AAHFS3876K1ZQ

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

MaterialM.S. C.I.
PackagingWooden Case 1250 X 1550 X 2000 Mm
Number Of FlowerRadial Drilling Machine
Drill Capacity38 Mm
Main Motor Power1.5 HP
Arm Elevating Motor Power0.5 HP
Min Distance From Base To Spindle230 Mm
Column Diameter165 Mm
Number Of T-Slots On Base Plate4
Max Distance From Column To Spindle810 Mm
Range Of Spindle Speed62-1980 RPM
Base Plate Overall Height2000 Mm
Arm Swivel Angle90 Degrees
Working Table Dimensions380x300x300 Mm
Min Distance From Column To Spindle360 Mm
Spindle Travel220 Mm
Spindle NoseMT 4
Base Plate Dimensions760x1250x150 Mm
Base Plate Working Surface820 X 610 Mm
Max Distance From Base To Spindle930 Mm
Max Drill Head Travel450 Mm
Power Feed Range0.08-0.04 Mm/Rev.
Max Drilling Radius895 Mm
Number Of Spindle Speeds8
Min Drilling Radius440 Mm

Universal Radial Drilling Machine SMTR-II Technical Specification : Capacity : M.S. C.I. Drill Capacity 38 mm 38 mm Drill Head : 1. Spindle nose MT 4 2. Spindle Travel mm. 220 3. No. of Spindle Speed 8 4. Range of Spindle Speed RPM 62-1980 5. Range of Power Feed mm / Rev. (2) 0.08-0.04 Power : H.P. V. Belt Main Motor 1.5 B-45 Arm Elevating Motor 0.5 A-23 Working Table : L x M x W mm. 380x300x300 Working Range : 1. Drilling Radius Max./Min. mm. 895/440 2. Distance from column to Spindle Max./Min. mm. 810/360 3. Max Drill Head Travel mm. 450 4. Distance from Base to Spindle Max./Min mm. 930/230 5. Diametere of Column mm. 165 6. Swivel of Arm L/R Side 90 Base Plate : 1. L x W x H mm. 760x1250x150 mm 2. Working Surface mm. 820 x 610 3. No. of T-Slots mm. (4) 16 4. Overall Height mm. 2000 Wooden case size L x W x H mm. 1250 x 1550 x 2000 PDF Creator - PDF4Free v2.0 http://www.pdf4free.com
