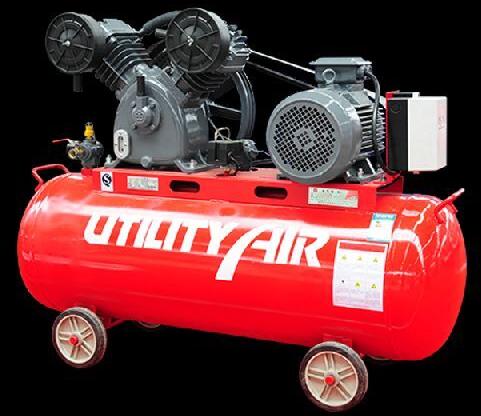

Belt Driven 4kw Motor Mobile Piston Air Compressor

Crankcase of belt driven 4kw motor mobile piston air compressors kv5508 are arc-shaped. Both ends changed into the through-hole structure for convenient process;4kw mobile piston air compressors adopt pistons with enlarged diameter,to decrease the rotate speed and improve reliability. K series technical parameters                                                                                                            model parameters unit kv5508 kw7508 kw10008a air displacement m³/min 0.48 0.71 1 discharge pressure mpa 0.8 0.8 0.8 crankshaft speed rpm 860 820 750 cylinder no. 2 3 3 cylinder diameter mm 90 90 100 piston stroke mm 65 65 72 air receiver volume l 160 220 250 motor power kw 4 5.5 7.5 cooling method air cooling whole weight kg 180 220 260 length mm 1370 1450 1650 width mm 580 625 625 height mm 1080 1200 1260 certificates.
