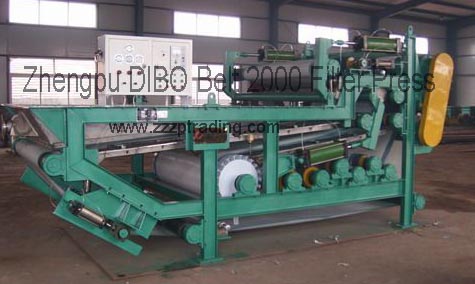

Belt Filter Press, Brand Name : DIBO

We are offering belt filter press, dibo belt series concentrated belt filter press design and operation characteristics:
1. The concentrated belt filter press�s concentrating stage treating efficiency and ability is perfect,comprare with the traditional concentration tanks. The traditional slurry concentration tank need to hold slurry for more than 10 hours, but leo concentrated belt filter press only need 50 seconds to 2 minutes
2. The concentrated stage and squeezing stage designed to be slide ,enlarged feeding part hydrostatic head, increase dewatering efficiency
3. Concentration and squeezing stage transferring designed to fulfill infinitely variable speeds
4. Belt correction system: adopt pneumatic feedback for single side self correction
5. Filter belt washing system: adopt high efficiency nozzle and brushing system for automatic cleaning
6. Filter belt tension device: adopt pneumatic tension system, easy to operate and maintenance
concentrated belt filter press parts raw material
1. Concentration stage is designed to be half-sealing structure, expect rollers , the other parts are made from stainless steel
2. Squeezing stage parts are made from carbon steel(anticorrosion treatment for surface), or follow as client�s requirements produce from stainless steel material
dy2000 belt filter press sizing and operation specifications
belt with(mm):2000
capacity :20-28m3/h
moisture content: �80%
belt tension 0-3.9kn/m
squeezing belt speed (m/min): 1.4-7.2
thickening belt speed(m/min):2.9-14.5
washing water consumption capacity (m3)
recycled water :�27
purified water : �9
washing water pressure (mpa)
recycled water :�0.4
purified water : �0.8.
Squeezing belt power (kw): 1.5
thickening belt power(kw):0.75
flocculating tossing motor (kw) 1.1
total weight (kg):4500
external size (mm):5920x2850x2270
