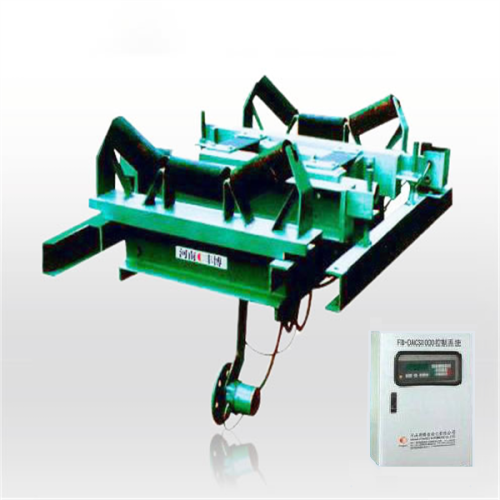

Belt Scale

We are offering belt scale.
product description:
fb-dacs1000 dual-idler electronic belt scale, absorbing germany schenk technology, is installed under the belt conveyor to make continuous weighing for conveying material. It is highly precise, reliable and can meet the requirements of many harsh environments. It can be widely used in building materials, chemicals, coal, ports, ceramics, food and other industries.
working principle:
when the material on the belt conveyor passes through the belt scale, the load cell detects the material weight and generates a signal in proportion to the material weight. The weight signal is transmitted to the controller. At the same time, the speed sensor installed under the scale detects the belt speed and generates a signal which is also transmitted to the controller. By multiplying the weight signal and the speed signal, the instantaneous flow rate and total accumulation can be calculated.
product feature:
1.fb-dmc-01a intelligent controller is adopted;
2. Achieve dynamic and continuous measuring;
3. Reasonable structure, stable and reliable measurement;
4. Automatically perform zero measurement and system calibration;
5. The control instrument can display instantaneous flow rate, total accumulation and can also transmit signal at the same time;
6. Can achieve continuous batch feeding;
7. With the function of over-load alarm;
8. Set all kinds of parameters, and adjust the system in best control conditions;
9. Can save electric-shock date permanently;
10. Self-diagnosis function and can be connected to dcs system
technical parameters:
weighing range 0.1~2000t/h
weighing mode dual-idler
weighing accuracy â±1%
maximum angle of inclination 30 degree
system power ac220vâ± 10% 50 hz â± 2%.
