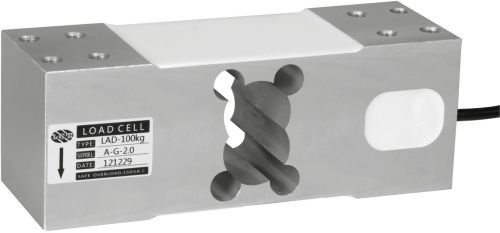

Bench Scale Sensor

We are offering bench scale sensor lad-a
material: aluminum alloy
capacity: 60kg~1000kg
dimenison: 64*60*174mm
accuracy class: c3
protection class: ip65
application: electronic balance, platform scale, weighing scale, price computing scale, counting scale, bench scale
recommend size of platform: 800*800mm.
item standard
rated loading 60kg~1000kg
dimension 64*60*174mm
rated output 2.0mvvã�â±5%
zero balance ã�â±0.05r.o.
non-linearity ã�â±0.015%r.o.
hysteresis,repeatability ã�â±0.01%r.o.
creep in 30 min. ã�â±0.02%r.o.
temp. Effect on output ã�â±0.02%r.o.10ã¢ï¿½ï¿½
temp. Effect on zero ã�â±0.02%r.o.10ã¢ï¿½ï¿½
input resistance 405ã�â±10ã�â©
output resistance 350ã�â±3ã�â©
safe overload 150%r.c.
insulation resistance ã¢ï¿½â¥5000mã�â©
compensated temp. Range -10to+40ã¢ï¿½ï¿½
operating temp. Range -20to+60ã¢ï¿½ï¿½
excitation ,recommended 5-12vdc
cable,length �5mm*2m.
