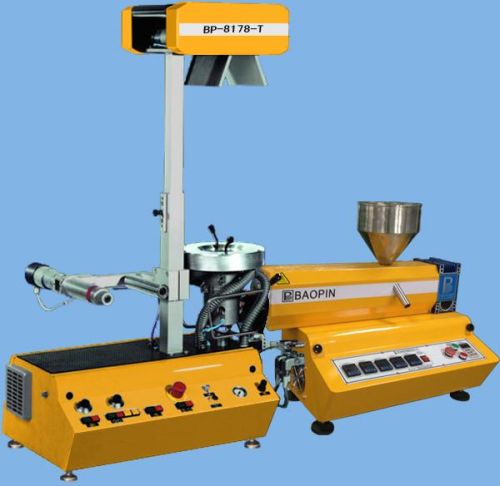

Benchtop Small Lab Film Blowing Machine

Benchtop small lab film blowing machine The benchtop small film blowing machine structure is compact, simple operation, can be used for single and multi-layer blown film, can be applicable to all polymerdispersion research. Benchtop film blowing machine consisted ofa small single screw extruder and small film blowing tower. It is the best choicefor quality control and testing the color distribution. Parameters: 1. Single screw extruder  Screw diameter  Φ 20   Length diameter ratio  1:28  Screw speed                                         0 - 95 rpm frequency control              Screw/Feeding barrel material: 38CrMoAl chromium-molybdenum steel.With the surface-layer processing of tempering, nitriding, chroming, polishingand super-precision grinding, the hardness HRC55~60, roughness Ra≤0.4μm,nitriding depth≥0.6mm. Electric control system: High accuracy intelligent digitalinstrument control and display all of the process parameters, includingtemperature control, driving, pressure, interlocking spreading function. 2. Film blowing tower  Diameter of dies  Φ 30  Driving rolling speed  0.5- 2 m/min adjustable           Maximum folded diameter of the film  100 mm  Traction motor  50 W  Fan  0.15 KW  Rolling torque motor
