Benchtop Tunable Lasers

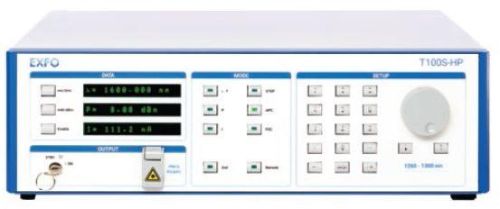

The T100S-HP is the most advanced and cost-effective solution for all R&D and manufacturing environments. This laser can be used as part of a swept test system together with the CTP10 platform or CT440 component tester for swept IL, RL, PDL measurements. Alternatively, the T100S-HP can also be used as a standalone laser in stepped mode.
The T100S-HP portfolio features six models divided into two categories

• Essential - The /O and /CL lasers deliver at least +10 dBm output power and are dedicated to the main telecom applications.
• Extended range - The /O+, /ES, /SCL and /CLU lasers deliver at least +8 dBm output power and cover the largest wavelength ranges available.

Key Features

• Power: > +10 dBm (Essential) and > +8 dBm (Extended)
• Tuning range: up to 200 nm
• Tuning speed: 100 nm/s
• Wavelength accuracy: < ±20 pm
• Sweeping and stepping operation
• Full-band coverage with 3 lasers
• Signal to noise ratio: 100 dB
• Compatible with the CTP10 and CT440 component testers
