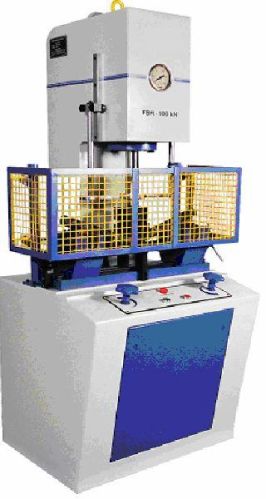

BEND AND RE-BEND TESTING MACHINES

FEATURE:

• To conduct testing of carbon steel bars upto 40 mm diameters for reinforcement of concrete.
• C- Frame design & hydraulically operated.
• Maximum load capacity provided is 100 kN.
• Dia.of support rollers is 100mm & distance between support rollers is 400mm.
• Different sizes of formers (tools) are available from diameter 6 to 400mm.
• Our Standard supply are dia.16, 20, 24, 32, 40, 50, 60, 64, 80, 140, 175, 240, 280, & 320 mm ( 14 nos. tools)
• Suitable re-bending tools supplied which will be incorporated in the machine.
• Hinged grilled safety doors at front is provided for safety.
• Accuracy conforming to BS: 4449.
