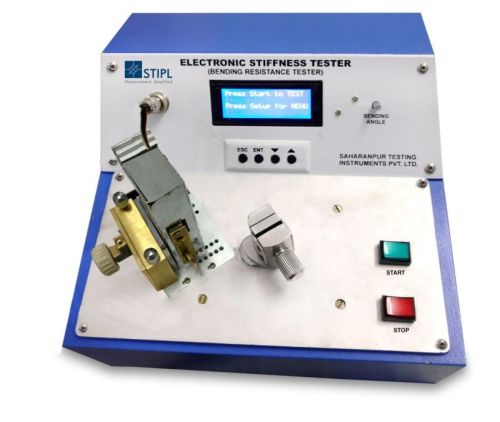

Bending Type Digital Stiffness Tester

₹ 1 - ₹ 10,000 / Piece

Brand NameSTIPL
Number Of FlowerStiffness Tester
Country of OriginIndia
Measuring Range0-5000 mN.
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 2 Years
Nature of Business Manufacturer
GST No. 09AAQCS9142J1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerStiffness Tester
Country of OriginIndia
Measuring Range0-5000 mN.
Brand NameSTIPL
Strip DimensionsWidth 38 mm (1.5”) , Thickness max 3 mm
Bending AngleInfinitely variable 50 & 300 and six fixed positions 50, 7.50 , 150 , 200 , 250 and 300
Bending Length5, 10, 15, 20 ,25 & 50 mm
Bending Speed50 /s.

Definition : Bending resistance, the resistance offered to a bending force by a rectangular specimen, which is clamped along one side, measured under specified conditions. The bending resistance is considered to be measured towards the side (felt or wire) that is concave during bending. Bending resistance is commonly referred to as “stiffness” .

Standardization : ISO 2493 , TAPPI T556 , SCAN P 29 , NFQ 03048 , APPITA/AS 1301 , DIN 53121

Device Description : The electronic stiffness Tester is easy to handle and calibrate. It is fast and efficient & paper board and intended for determining the bending resistance of a wide range of paper grades. The instrument can also be used for determination of the behavior of paper under long term stress, as well as to determine the bending stiffness. Test Description: one end of the test piece is easily fastened into the clamp. The maximum force required to bend the test piece to a specified angle is presented directly on the digital display . caliberation is easy and can be performed with the help of weight platform.
