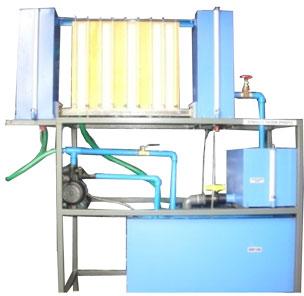

Bernoulli Theorem Apparatus

The unit consists of a rectangular transparent flow section through which water is to be flown the velocity of water is changes as cross sectional area of channel changes. The changes of head can be measured with manometric tube connected at various sockets, along with the length of channel. Thus the Bernoulli’s theorem can be verified by calculating the energy & head of water at different section.

FEATURES

• Steady flow arrangement.
• Transparent flow section.
• Indendent measurement of Pressure Head
• Variable flow rate arrangement.
• Self sufficient unit.

SPECIFICATION

• Supply Tank – 200 x 200 x 600 mm – 2 No
.
• Flow channel 750mm long, transparent acrylic.
• Manometric tubes fixed over the flow channel – 9 No. at distance of 7 Cm.
• Supply with flow control valve.
• Measuring tank. – 300x400x300mm with FRP Lining
• Sump tank.- 900x400x400mm with FRP Lining.
• 0.5 H.P. pump Kirloskar make
• Supply tank is fitted on heavy pipe frame.
• Stop watch.

RANGE OF EXPERIMENT

• Bernoulli’s theorem can be verified.
