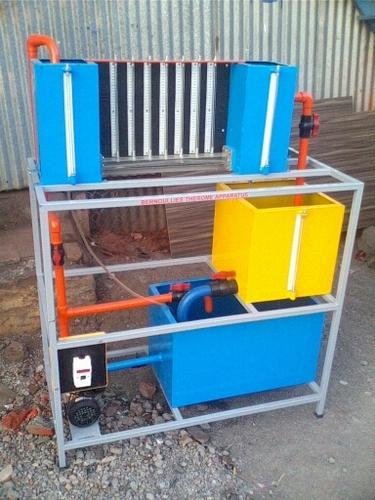

Bernoullis Theorem Apparatus

The unit consists of a rectangular transparent flow section through which water is to be flown the velocity of water is changes as cross sectional area of channel changes. The changes of head can be measured with manometric tube connected at various sockets, along with the length of channel. Thus the Bernoulli?s theorem can be verified by calculating the energy head of water at different section. Features: ? Steady flow arrangement.Transparent flow section.Independent measurement of pressure head.Variable flow rate arrangement.Self sufficient unit. Range Of Experiment: Bernoulli?s theorem can be verified. Specifications: Flow channel 750 mm long, transparent acrylic.Supply with flow control valve.Manometric tubes fixed over the flow channel.Measuring tank = 400 x 300 mmSump tank = 900 x 400 x 400 mm1/2 Hp pump.Supply tank is fitted on heavy pipe frame.Stop watch. Service Required: Suitable Water supply.Suitable floor space 2 m. x 2 m.
