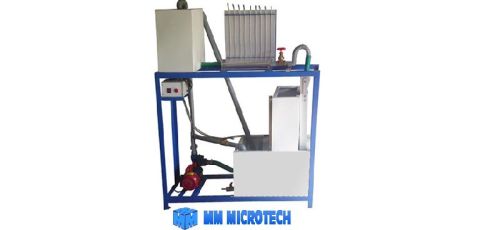

Bernoullis Theorem Apparatus

High quality Bernoulli's Theorem Apparatus is offered by us. Set up of our Bernoulli's Theorem Apparatus consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement. The flow rate of water in Bernoulli's Theorem Apparatus is measured using measuring tank and Digital Timer provided.

Features:

1. Water Circulation Closed loop.
2. Compact & stand-alone set up
3. Powder Coated Painted structure
4. Simple to operate & maintain

Specifications:

• Pump : ½ HP Centrifugal Pump.
• AC Motor : ½ HP 230V AC.
• Supply Tank : 120 Ltrs. Made of MS with FRP Lining.
• Measuring tank : 40 Ltrs. Made of MS with FRP Lining and fitted with piezo meter tube & scale.
• Fitted with Venturi meter with 7 Nos. piezo meter tube & scale
• Piping & Fittings : GI/PVC with necessary Valves.
• Control panel : 1HP DOL Starter.
• Digital Timer : MCB Load and Line Indicator.

Utilities Required:

• Electric supply Provide : 230 +/-10 VAC, 50 Hz, Single phase
• Electric supply with proper earthing. (Neutral . Earth voltage less than 5 VAC.)
• 5A,Three pin socket with switch for pump.
• Water supply Tap water connection ½. BSP
