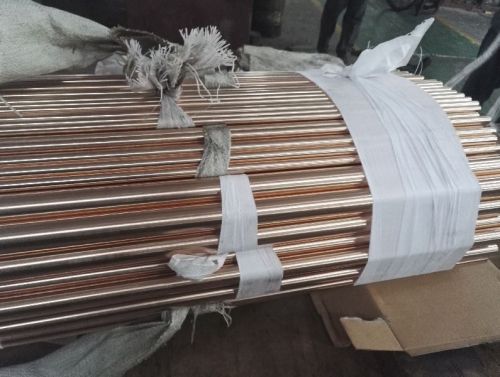

Solid Polished Beryllium Copper Rod, Brand Name : OEM/UNIQUE

c17200/cube2/cw101c/din 2.1247 beryllium copper rod

 chemical composition:

be: 1.80-2.0%

co+ni: 0.20% min.

co+ni+fe: 0.60% max.

cu: balance

note: copper plus additions equal 99.5% minimum.

material description:

high strength, good fatigue strength, good conductivity,

non-magnetic, wear resistance

applications

- nozzles and needles for hot runner systems

- inserts in plastic blow moulding and plastic injection moulding

- needles and nozzles for hot canal systems

- packing bearings rings in extreme high pressure hydraulics(e.g. Jet cutting)

- stud holders for stud welding equipment

- high strength, non-magnetic, non-sparking parts, sleeves,bushings, bearings for offshore, onshore, airplanes, precision instruments and medical applications moulding

shapes :

round bars, round wires, round tube,

flat bars, square bars, rectangular bars, hexagon bars, plates, sheets, coils

custom shapes are available upon request.

available sizes:

rod: dia.5~200mm; wire: dia.0.1-5.0mm

tube: od10~60mm, thk 0.1~10mm

plate: thk min 0.5mm

custom diameter & sizes, random mill lengths

related standard :

rods/bars/: astm b196; sae j461,463; ams 4533,4534,4535; ams4650,4651;

rwma class 4, gost 15835

tubes: astm b251,643

strips: astm b194, ams4530,4532; sae j461,463, gost 1789

sheets: astm b194

wires: astm b197, ams4725, sae j461,463, jis 3270, gost 15834

plates: astm b194, sae j461,463; ams4530,4533,4534,ams4650,4651; rwma class 4.

european standards: cube2, din 2.1247, cw101c to en, brb2

other material are also available

c17300/cube2pb/cw102c/din 2.1248

c17500/cuco2be/cw104c/din 2.1285

c17510/cuni2be/cw110c/din 2.0850

cuco1ni1be/cw103c
