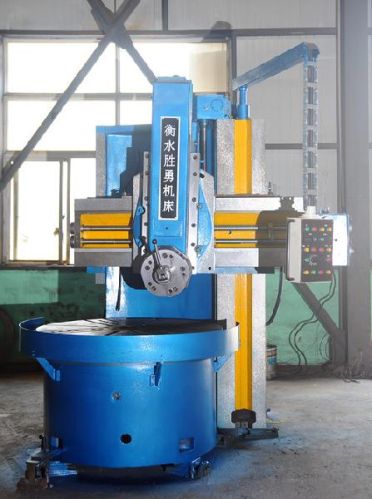

Best Price Of CNC VTL Vertical Lathe

Are you a cnc vtl seeker ? Do you want to know the price of VTL ? We are kinds of VTL supplier in China. The VTL lathe machine is appropriate for carbon alloy and ceramic tools, by turning the inner and outer cylinder,flat surface, inner taper and outer taper, spherical surface and sophisticated arc surface for ferric, nonferrous metal and  sorts of non-metal materials elements in high speed.
We can provide different types vertical lathe,including single column VTL,Double column VTL and high speed VTL. Price vertical lathe will be different according to their defferent types. VTL casting material is high-density cast iron, which provides high strength and vibration dampening capacity. Casting has been through strict artificial aging and vibration aging, make sure the machine's rigidity and stability.
Best price of CNC VTL vertical lathe
Technical specification of Best price of CNC VTL vertical lathe CK5120
1 Table diameter 1800 mm
2 Maximum turning diameter 2000 mm
3 Maximum height of workpiece 1200 mm
4 Maximum weight of workpiece 6 t
5 Speed change of table 2.5-80rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 1000 mm
