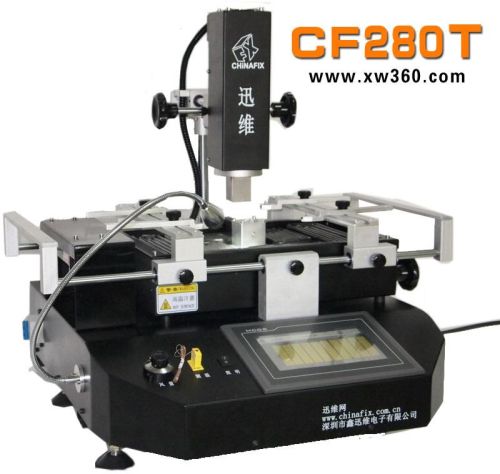

Bga Welding Machine

We are offering Bga Welding Machine.
model:chinafix cf280t
solder type:leadedlead free
smd type:micro bga,bga,csp,qfp
pcb thickness:0.5~4mm
pcb size:w50*d50~w440*d310mm
heating modepower(upper):hot-blast air 800w
heating modepower(bottom):hot-blast air 800w
preheating modepower:ir 2200w
pcb location mode:shape or tongs
driver mode:gear,rack
controladjusting mode:touch screen + plc
temperature range:room temperature 0~400°c
max power:3800w
supply voltage:110v220v
machine dimension:720mm(l) * 700mm(w) * 570mm(h)
machine weight:28kg
cf280t characteristic:
1, touch-screen+plc, precise temperature control, being operate easily
2, the hot-air part adopts exported long-life heating coil, through special insulation heating treatment, heating uniformlier, long-life to use well.
3, the design of three warm areas' support, can fine adjust to support height, avoid welding-area to sink.
4, upper and bottom hot-air control temperature separately, it can store 50 items with 16 stages temperature curve setting-up.
5, overtemperature protection function,over the temperature, heating coil automatic power off.
6, intelligent mute function, keep mute under non-working condition.
7, new type design of air outlet with mixed wind, air-out temperature uniformilier.
8, machincal part adopts oxidation treatment, main machine box use thicken material, prevent shapeless at whole hog.
9, upper heating part continues to use high-grade products' design of move by xy shaft, treating all kinds of shapeless chips easiler.
10, three warm areas can be controlled separated, to achieve the function of soldering and drying.
11, complete machine construction adopts the only design of dismounting easily, exchange electric parts simply and conveniently, warranty with fast speed, machine's rate of utilization reaches the highest.
12, allocate vacuum attaching-pen, take down chips easily.
