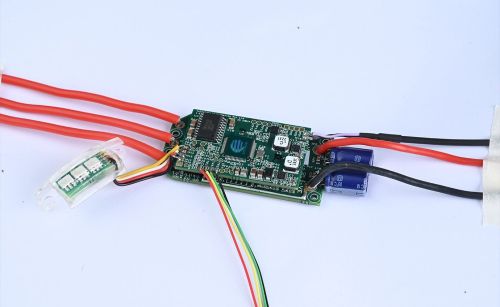

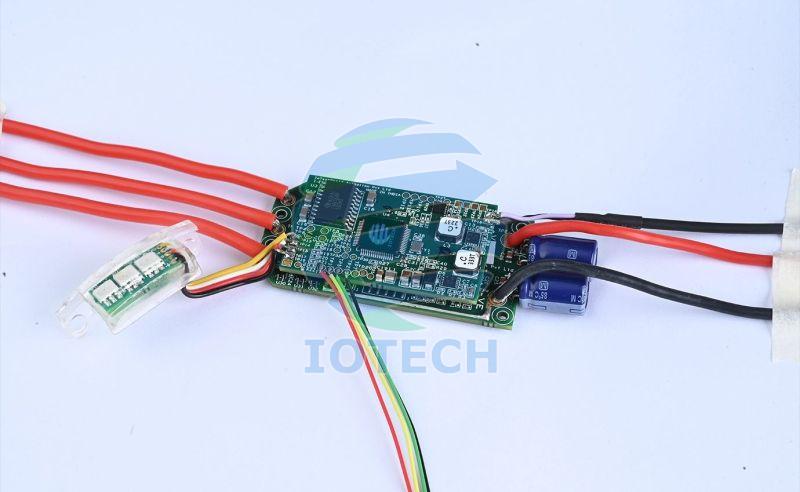

Aluminium Alloy Casing Bharath Drone Electronic Speed Controller

Get Latest Price

MaterialAluminium Alloy Casing
Brand NameBharath
Operating Temperature-40℃~+85℃
ApplicationDesigned For Demanding UAV Applications
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

IoTechWorld Avigation Pvt. Ltd.

Gurugram, Haryana

View Number

Member Since 7 Years
Nature of Business Manufacturer
GST No. 06AAECI4680B1ZU

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ApplicationDesigned For Demanding UAV Applications
MaterialAluminium Alloy Casing
Brand NameBharath
Country of OriginIndia
Operating Temperature-40℃~+85℃
After-sales SupportStrong After-sales Support
FunctionalityPrecise Motor Control For Agile Maneuvers
PresencePAN-India Presence
Max. Current40A Max
DurabilityBuilt To Withstand Flight Challenges, Ensuring Reliability
Design3 Phase Shunnt
PurposeEssential Power Hub For Seamless Flight
Max. Input Voltage60V
FirmwareAdvanced For Smooth Throttle Response & Efficient Motor Control
WaterproofingIP-rated Waterproofing
DriveDrive India’s Drone Ecosystem Forward
MCUSTM32F405
Power Rating40A Continuous, 60A Peak
FeaturesReliable Voltage Regulation, Vigilant Current Monitoring, Protective Safeguards
CostCompetitive Costs
CompatibilityTailored For Specific Drones
IsolationThrottle
IP RatingIP67
Operating Voltage6s
Communication PortsUSB, CAN
Drive ModeFOC (sinusoidal)
PWM Input Signal3.3V/5V

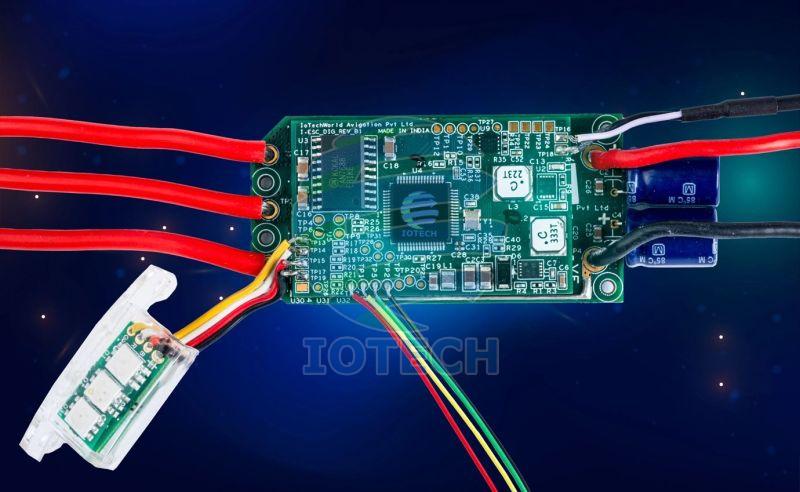

IoTech Electronic Speed Controllers (ESCs) are designed to complement BLDC motors, delivering efficient power management, precision, and reliability for DGCA-approved drones. Made in India, these ESCs ensure smooth motor operation and durability through rigorous testing. As a local manufacturer, we offer high-quality products at competitive costs, backed by strong after-sales support and a PAN-India presence to drive India’s drone ecosystem forward.

High-performance ESC for demanding UAV applications.
40A continuous, 60A peak current capability for powerful motors.
Advanced firmware for smooth throttle response & efficient motor control.
Rugged design with aluminium alloy casing & IP-rated waterproofing.
Purpose: Essential power hub for seamless flight
Functionality: Precise motor control for agile maneuvers
Features: Reliable voltage regulation, vigilant current monitoring, protective safeguards
Compatibility: Tailored for specific drones to ensure optimal performance
Durability: Built to withstand flight’s challenges, ensuring long-lasting reliability

Additional Information

Stable supply

It maintains a stable power supply, preventing fluctuations that could affect the drone’s operation.

Consistent performance

The ESC ensures reliable and consistent operation of the drone’s systems.

Overcurrent protection

ESCs often have built-in overload protection to prevent damage to the motors and other components.

Flexibility

It can often be customized to fit different drone configurations.

Compact Size

Their compact size allows for efficient use of space within the drone’s frame.
