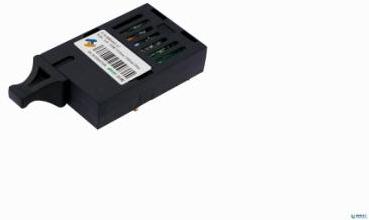

BIDI 1x9 Single Mode Up To 2.5Gbps Fiber Optic Transceiver

Description
• 1x9 155m ~ 2.5g optical transceiver
• 1x9 tx1310nmrx1490nm 20km single mode module
• 1x9 tx1490nmrx1550nm 80km single mode fiber optic transceiver
• 1x9 tx1310nmrx1550nm 40km communication module
• 1x9 1.25gbps simplex scfc connector
• brand new and 100%genuine
• advantage price,1 year warranty
• compatible with cisco,h3c
features:
• 1×9 package with scfc receptacle
• up to 2.5gbps data links
• up to 80km transmission with single-mode fiber
• single +3.3v or +5v power supply
• operating temperature
standard : 0 to +70°c
industrial: -40 to +85°c
• compliant with gr-468-core
• eye safety designed to meet laser class 1, compliant with iec 60825-1
• compatible with rohs
application:
• sonet sdh
• gigabit ethernet
• fiber channel
• cpri obsai
• switch to switch interface
• router to server interface
• other optical transmission systems
htt 1×9 fiber-optic transceiver is high performance and cost effective module with duplex scrc receptacle for bi-directional fiber optical data communication applications. The module can be applied in commerical and industrial standard. It is typically operate at data rate from 155m to 2.5g and main application include synchronous optical networking (sonet),gigabit ethernet,optic fiber channel,switch to switch interface,router to router interface and othe optical transmission systems. The module is compatible with gr-468-core and iec60825-1.
