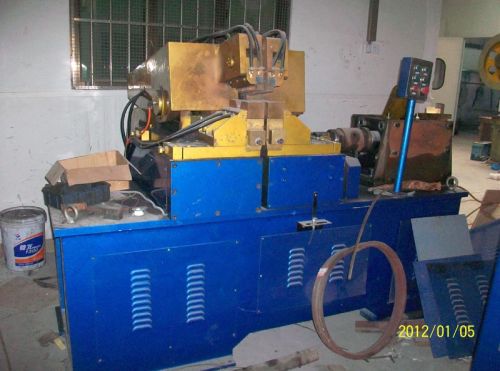

Big Power Butt Flash Welding Machine

We are offering un-200 series flash butt welding machine.
Product introduction
the parts to be butt welded are pneumatically and hydraulically controlled to provide an even flash contact at the contact edges,initially the power is turned on and progressively increased to remove oxidants and residues.the end surfaces of the parts to be welded are heated to plastic stage through a regulated power supply.upset forging force is then applied to make the end surfaces to get flushed and welded.
The machine is designed to provide the high welding strength to the welded component.there is no false joint,residue and air bubble in the point of welding.
The machine is widely used in the butt welding of handles of kitchen utensils,such as knife,fork,spoon and spatula,as well as the welding of hardware products,such as round pipes,round steel,flat iron,bicycle wheel rims,motor wheel rims,etc.
Features
by integration of electromechanical,hydraulic and pneumatic design,the warming up,flashing and upset forging process are optimized to have best result.
The microprocessor regulates the process has 5 programs to choose from,for various application.
Technical parameter
model rated capacity rated primary voltage rated frequency maximum short current rated duty cycle maximum fastening force maximum forging force external dimension weight
un-200 200kva 380v 5060hz 35000a 50% 8000n 3000n 1350*800*
1600mm 1450kg
