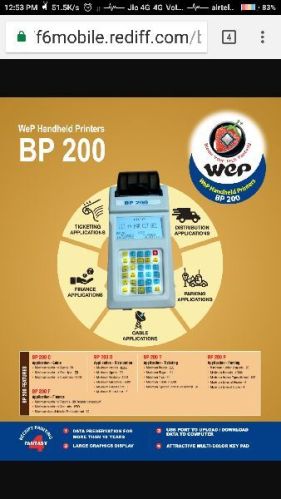

Billing Printer (BP-200)

With the assistance of our hardworking team, we are able to offer a wide range of quality Billing Printer (BP-200). Our fast and modern transit facilities enable us to deliver the orders within the stipulated time frame.

CPU :

• Advanced micro controller based system with the latest hardware technology
• Micro controller with 32 bit (cortex arm core)
• 64k flash memory to 512 byte
• Clock speed of 12MHz to 71 Mhz
• Min 1 k RAM

Flash Data Memory

• Inbuilt min 8 MB flash memory expandable to 16 MB(optional)
• Data preservation in HANDHELD flash memory for more than 10 years
• Data preservation for more than 10000 tickets.
• In built real time clock with batterry back up

Operating Firmware : Embedded C.
Display

• Graphic LCD display with minimum 128 x 64 pixels
• White LED Backlight, FSTN Monochrome
• Capability to display graphic images
• 20 Chrs by 4 lines and 20 characters by 8 lines
• Alphanumeric keyboard having capability of 10 millons operation
• Keys in differnt colors differentiating numeral, function etc.
• Simple easy to use 32 soft rubber keys.
• Thermal printer (fujitsu / APS) 2" Inch
• Paper roll size to print at least 200 tickets per roll (13 meter roll)
• Fast speed @ 8 lines – 50mm / sec
• Capability to print in expanded and compressed modes
• Two inch thermal papaer size
• Cutter for easy tearing of tickets
• Printing speed : 1 ticket per second of 7 lines
• Soft touch power on - off
