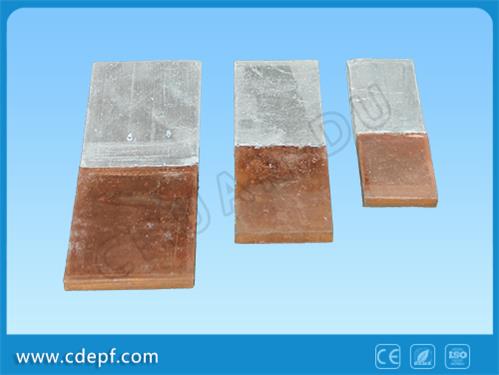

Bimetallic Ai-Cu Transition Terminal Connector

Bimetallic Ai-Cu Transition Terminal Connector The Aluminum Copper Alloy Fitting Ai-Cu Transition Terminal Connector is suitable for isolator pad to aluminum busbar ranging from 1" ips to 4" ips pipe. The flexible jumper made of fine gauge of aluminum copper sheet, depending on the rated current. Catalog No. Conductor Dia. (MM) Dimensions (MM) Weight (KG) A b L1 L2 MG-50*5 50*5 50 5.0 50 60 0.2 MG-63*6.3 63*6.3 63 6.3 68 85 0.3 MG-63*8 63*8 63 8.0 68 85 0.4 MG-63*10 63*10 63 10.0 68 85 0.5 MG-80*6.3 80*6.3 80 6.3 85 100 0.5 MG-80*8 80*8 80 8.0 85 100 0.7 MG-80*10 80*10 80 10.0 85 100 0.8 MG-100*8 100*8 100 8.0 105 120 1.0 MG-100*10 100*10 100 10.0 105 120 1.3 MG-125*8 125*8 125 8.0 130 140 1.5 MG-125*10 125*10 125 10.0 130 140 1.9 MG-125*12.5 125*12.5 125 12.5 130 140 2.4 our factory Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations.
