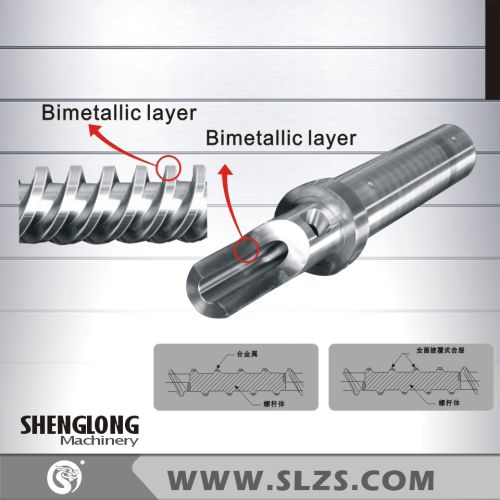

Bimetallic Screw Barrel

₹ 90,500 / 3000 3000 Set

MOQ1 Set(s)
Hardness of nitration900-1020Hv
Hardness of Bimetallic LayerHRC55-72
Fragility of nitrationLess than grade 1
Depth of Bimetallic Layer>2mm .
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Surface roughnessRa 0.4um
Hardness of Bimetallic LayerHRC55-72
Depth of Nitrated Layer0.5-0.8mm
Depth of Bimetallic Layer>2mm .
Thickness of Cr-coated Layer0.03-0.08m
Fragility of nitrationLess than grade 1
Hardness of nitration900-1020Hv

We are offering bimetallic screw barrel.
Alloy-steel of high-quality
1.38 crmoaia(jis sacm645)
2.42crmo(aisi4140)
3.9cr18mov
4.cw6mo5cr4v2
5.skd61
bimetallic alloy maerials:
1.fe-based alloy
2,ni-based alloy
3,co-based alloy
4.nico-based alloy
5.tungsten carbide
heat-treatment
nitriding treatment
electroplate hard-chrome
high-frequency quenching
spraying corrosion wear-resisting dual metal layers
vacuum quenching
screw
1) nitride depth: 0.55-0.7mm
2) nitride hardness: 850-960hv
3) surface roughness: ra≤0.8um
4) screw straightness: 0.015mm
5) bimetallic hardness: hrc50-62
6) bimetallic depth: 1.5-2.0mm
barrel
1) nitride depth: 0.55-0.7mm
2) nitride hardness: 960-1020hv
3) surface roughness: ra≤1.6um
4) bimetallic hardness: hrc50-65
5) bimetallic depth: 1.5-2.0mm
