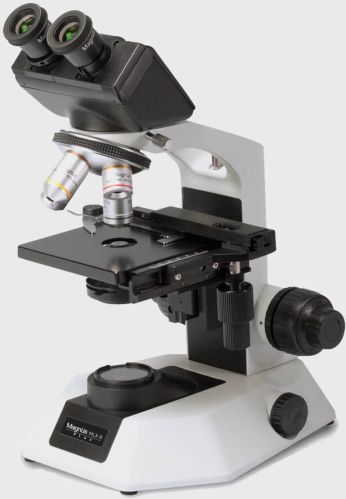

KEY FEATURES Parfocal and Centered Optics Optics with Multi-layer Coating & Anti-Fungus treated Choice of Halogen and LED Illumination Easy Access for Lamp Replacement The Binocular Microscope (MLX-B Plus) offers enhanced optical performance with dual eyepieces for comfortable viewing. It is designed for detailed observation in biological, clinical, and educational settings, providing clear and accurate magnification.
| Item | Specifications | MLX-B Plus Binocular Version | MLX-Tr Plus Trinocular Version |
|---|---|---|---|
| Optical System | Semi-Plan achromatic optics with anti-fungal treatment. Uniformly centered, Interchangable & Parfocal, Anti-Fungus treated. | ||
| Body | Aluminium die cast body with all critical movements based on ball bearing and wire guides, thereby ensuring smooth and precise manipulation. | ||
| Inclined Observation Head | Binocular 45 degree inclined, rotatable through 360 degrees | ||
| Trinocular 45 degree inclined, rotatable through 360 degrees | |||
| Eyepieces (widefield) for observation | WF 10x (FN 18mm) paired eyepiece. The unique optical design of the compensating eyepiece provides relief from eye fatigue and renders color-compensated wide-field images of utmost clarity. | ||
| Nosepiece | Quadruple revolving nosepiece based on precision ball-bearing mechanism with positive stop click. | ||
| Objectives | Semi-Plan achromatic objectives, antifungal 4X 10X 40X 100X (oil/spring) | N.A. 0.10 0.25 0.65 1.25 | W.D 29.0mm 6.3mm 0.6mm 0.15mm |
| Mechanical Stage | Co-axial low drive mechanical stage (125mm x 145mm) (±5mm) with traverse area of 50mmx 76mm(±5mm) | ||
| Condenser | Abbe condenser with aperture iris diaphragm (N.A. 1.25) focusable with rack & pinion through 20mm and a continuously variable iris diaphragm with a removable blue filter for daylight observation. Rack & pinion mounted condenser holder. | ||
| Focusing | Co-axial coarse & fine controls with a focus adjustment and fine adjustment knobs. Coarse Focus range 25mm. | ||
| Illumination base with option | a) Built-in-illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal Power supply 100V-240V AC 50Hz (SMPS). Supplied with one spare bulb & spare fuse. Easily replaceable lamp from front. | MLX-B Plus | MLX-Tr Plus |
| b) LED light source High brightness, long life (30000 hrs). | MLX-B Plus LED | MLX-Tr Plus LED | |
| c) LED light source (with battery backup) High brightness, long life (30000 hrs). Battery backup in-built NiMH Rechargeable batteries provide 6-8 hours back-up on full charge | MLX-B Plus Freedom | MLX-Tr Plus Freedom |
