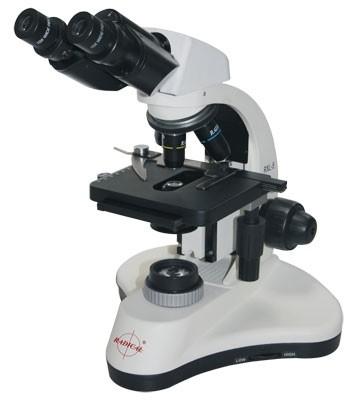

Binocular Research Microscope

Stand - Robust, ergonomically designed with stability having anti-mould and hard coated design. All objectives, eyepieces, optics & observation tubes are having anti fungal treatment with universal infinity corrected optical system.

Viewing Head - Sidentopf Binocular Head inclined at 30º & 360º rotatable, Inter-pupillary distance 50-75mm with dioptric adjustment.
Nosepiece - Quadruple/Quintuple inward facing nosepiece with click stops mechanism.
Objectives - DIN Semi-Plan Achromatic 4X/0.1 WD 20mm, 10X/0.25 WD 6.5mm, 40X SL/0.65 WD 0.4mm and 100X SL Oil /1.25 WD 0.2mm.- DIN Plan Achromatic 4X/0.1 WD 20mm, 10X/0.25 WD 6.5mm, 40X SL / 0.65 WD 0.6mm and 100X SL Oil / 1.25 WD 0.2mm.
Eyepieces - High point wide-field eyepiece WF 10x / FOV 20mm paired.
Stage - Right handed, co-axial, low positioned, Double plated mechanical stage 135mm x120mm with a cross travel range of 50x57mm. Scale Division : 0.1mm, Double Slide Holder.
Focus Adjustment - Coaxial, coarse and fine focus adjustment knobs. Coarse range 25mm, Fine focusing range 2mm / rotation, each division 0.002mm with torque and focusing adjustment.
Condenser - Bright field Abbe Condenser N.A. 0.9-1.25 with inbuilt Iris-diaphragm and swing - out filter holder on rack & pinion arrangement.
Illumination - 6Volt 20W Halogen Lamp or LED Light source operated on 220 Volt / 50 Hz.
Power Source - Built- in SMPS 110 - 220Volt 50Hz AC Input.
Approvals - BIS Standard ISI marked & CE approved.
Standard Accessories - Spare Halogen Lamp, Fuse, Vinyl Dust Cover, Power Cord, 10ml. Oil Immersion and user operating manual.
Optional Accessories - Eyepieces : (H/WF) 5x, 6x, 15x & 20x, Objectives : 3x, 5x, 20x & 60x, Phase Contrast Attachment, Dark Field Attachment, Polarising Attachment, Micrometer Slide 1/100mm, Micrometer Eyepieces, Pointer Eyepieces, Spare Graticules, Imaging Cameras, Analysis Softwares, Multiviewing Attachment, Rackless mechanical stages. LED with battery backup, Wooden storing cabinet
