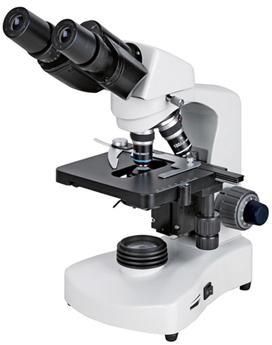

Contact SupplierWe are offering biological binocular microscope.
standard specifications:
viewing head: compensation binocular head ,30 °inclined, interpupillary distance 48-75mm
eyepiece :wide field eyepiece wf10x/18
objectives: achromatic objectives 4x 10x 40x(s) 100x(s oil)
nosepiece: backward quadruple nosepiece
stage: double layers mechanical stage size:132x142mm/75x40mm
condenser: abbe na1.20 condenser with iirs diaphragm & filters
focusing system: coaxial coarse and fine adjustment, fine division 0.004mm, coase stroke 32.7mm per rotation, fine stroke 0.4mm per rotation, moving range 24mm
illumination :220v or 110v/3w led, brightness adjustable.
