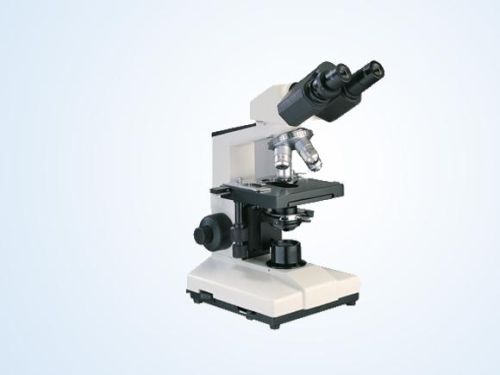

Contact SupplierWe are offering biological microscope. Biological microscope ml11 is equipped with plan achromatic objective and wide field eyepiece. It has the advantages of clear image, wide field of view and easy to operate. Ml11 is widely used in the fields of biology, industry and agriculture and it is an ideal instrument for education and institutes departments.
features of ml11 biological microscope
equipped with wide field eyepiece and plan achromatic objectives, clear and wide field of view.
Coaxial coarsefine focus, with tension adjustable, minimum division of fine focusing 2μm.
Kohler illumination, 6v 20w halogen lamp, brightness adjustable.
Parameters :
eyepiece
wide field wf10x(φ18mm)
objective
plan achromatic pl 4x0.10
plan achromatic pl 10x0.25
plan achromatic pl 40x0.65(spring)
plan achromatic pl 100x1.25(spring, oil)
eyepiece tube
binocular trinocular ( 30°inclined)
focus system
coaxial coarse and fine adjustment,minimum graduation in fine movement: 2μm
nosepiece
quadruple (fixed nosepiece with outward tilted)
stage
double layer mechanical (size:135mm*125mm, moving range: 75mm*35mm)
abbe condenser
n.a.1.25 up and down adjustable
filter
blue filter
condenser
for halogen lamp
light source
6v 20w halogen lamp, brightness adjustable
