Biomass Gasification System

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The Biomass Gasification System is a furnace where incomplete burning of biomass is performed. This in turn yields a mixture of various other gases that can be used for combustion. We manufacture and supply these systems to our clients from different parts of the world. Our products are known to be affordable and also highly efficient. We would be delighted to undertake your orders.

View More Details

Send Enquiry

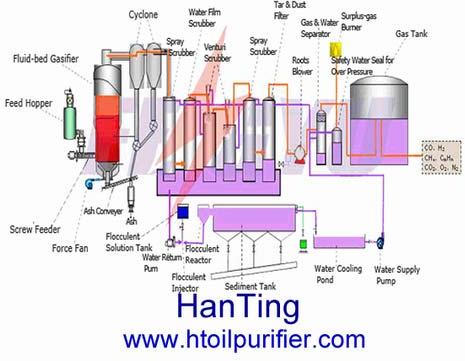

HTSF Biomass Gasification System Technical Data

Parameter/TYPE	LS-200-A1-R	LS-400-A1-R	LS-800-A1-R	LS-1000-A1-R	LS-1500-A1-R
GENERATOR RATED OUTPUT POWER(KWh)	200	400	800	1000	1500
PRODUCTIO VOLUME of Biomass gas(Nm³/hr)	≥700	≥1400	≥2800	≥3500	≥5200
floor space ( m² )	300	500	1000	1200	2000
weight of gasification (ton)	15.1	20.4	26.8	30.9	39.7
size of gasification furnace(ton)	Ø1600X9000	Ø1800X10000	Ø2000X11000	Ø2300X12000	Ø3000X14000
Consumption of biomass fuel(ton/hr)	<400	<800	<1600	<2000	<3000
Efficiency of gasification	≥70%
Ash removing manner	dry-type
