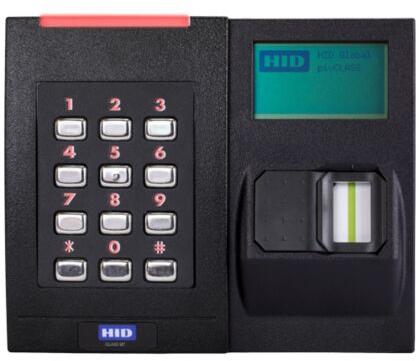

HID iCLASS SE RKLB40 is a biometric access control reader from HID Global. It is based on the award-winning iCLASS SE platform. The HID iCLASS SE RKLB 40 access control biometric readers can be supported to support access cards, fingerprint biometrics, card/PIN or Card/fingerprint/PIN access security protocols. It allows for seamless migration from bioCLASS and supports the most recent biometric template standards.
The HID iCLASS SE RKLB40 is can support the most advanced technologies in the industries such as Seos and iCLASS SE making it one of the most secure biometric readers in the industry. Seos & iCLASS Se provides multi-layered authentication between card and reader providing high-class security. Advanced security features such as Open Supervised Device Protocol are possible with HID iCLASS SE RKLB40. It should be noted that HID iCLASS SE RKLB40 is compatible with bioCLASS and the interoperable ANSI-378 biometric template standard it will be highly flexible for migration purposes.
Standard FeaturesPowerfully Secure – Supports breakthrough Seos® and iCLASS® card
technologies and provides best practice standards for multi-layered
authentication between card and reader.
Convenient – Built-in field enrollment capabilities support both access
control verification and biometric templates.
More Private – Fingerprint templates are stored on smart cards to alleviate
privacy and database management concerns. Open Supervised Device
Protocol (OSDP) protects the full range of communication from
reader to controller.
| Model Name | RKLB40 | RKL405 | RPKL405 |
| Base Part Number | 928N | 929N | 929P |
|
13.56 MHz Credential Compatibility | •iCLASS® Seos® 8kB
(iCLASS® Seos® 16kB NOT COMPATIBLE) •Standard iCLASS® 16-32k bit Access Control Application (iCLASS SE and 2k bit Standard iCLASS NOT COMPATIBLE) | • Secure Identity Object® (SIO®) on iCLASS® Seos®, iCLASS SE®/SR, MIFARE® DESFire® EV1 and MIFARE Classic
• MIFARE and MIFARE DESFire EV1 custom data models • standard iCLASS Access Control Application • ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN • FeliCa 4 CSN, CEPAS4 CSN or CAN | |
| 125kHz Credential Compatibility | N/A | N/A | HID Prox, AWI, EM4102 |
| TYPICAL CONTACTLESS READ RANGE1 – Single Technology ID-1 Cards | |||
| iCLASS® Seos™ | 1.2” (3 cm) | 1.6″ (4 cm) | |
| iCLASS® | 4.7″ (12 cm) | 4.7″ (12 cm) | |
| DESFire® EV1 SE™ | N/A | 1.6″ (4 cm) | |
| MIFARE® Classic SE™ | N/A | 1.6″ (4 cm) | |
| HID Prox / AWID | N/A | 2.8″ (7 cm) | |
| EM4102 | N/A | 3.1″ (8 cm) | |
| Mounting | Double-gang size; designed to mount on double (preferable for stable wall mount) or single-gang switch box | ||
| Color | Black | ||
| Keypad | Yes (illuminated, 4 x 3) | ||
| Display | Yes (illuminated) | ||
| Dimensions | 4.8” x 6.1” x 1.2” (12.2 cm x 15.6 cm x 3.0 cm) | ||
| Product Weight (Terminal Strip) | 16.0 oz (454 g) | 12.9 oz (366 g) | 13.0 oz (368 g) |
| Operating Voltage Range | +12VDC | ||
| Current Draw – Normal Standby Current2 | 195mA | 170mA | |
| Current Draw – Maximum Average3 | 255mA | 185mA | |
| Current Draw – Peak4 | 320mA | 250mA | |
| Operating Temperature | 14° to 122° F (-10° to 50° C) | -4°F to 149°F (-20°C to 65°C) | |
| Operating Humidity | 5% to 95% relative humidity non-condensing | ||
| Storage Temperature | -67Ëš to 185Ëš F (-55Ëš to 85Ëš C) | ||
| Environmental Rating | UL 294 and IP55 indoor / outdoor ratings | ||
| Fingerprint Biometric Sensor Type | Optical | N/A | |
|
Biometric Authentication Compatibility | •ANSI-378 template stored on
iCLASS Seos credential and verified on reader • bioCLASS® template stored on standard iCLASS credential and verified on reader (6180A enroller template is NOT COMPATIBLE) |
N/A | |
| Language Support | English, French, German, Spanish (International), Russian, Portuguese (Brazilian), Italian, Chinese (Simplified), Japanese, Korean | ||
| Communications | Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS4855
(OSDP BIOREAD & BIOMATCH command and pivCLASS Embedded Authentication – NOT SUPPORTED) | ||
| Panel Connection | Terminal Strip | ||
| Certifications | UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand),
SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan), WPC (India), ANRT (Morocco) | ||
| Cryto Processor Hardware Common Criteria Rating |
EAL5+ | ||
| Patents | www.hidglobal.com/patents | ||
| Housing Material | UL94 Polycarbonate | ||
| UL Ref Number | RKLB40E | RPKL40E | |
| SRD & WPC Model | RKCLB40E | RPKCL40E | |
| Warranty | Warranted against defects in materials and workmanship for one year (see complete warranty policy for details) | ||
