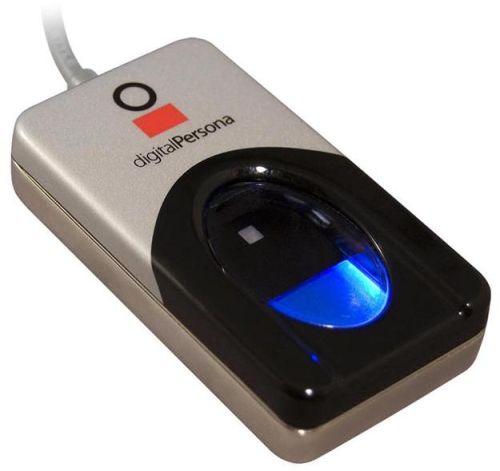

Biometric Fingerprint Scanner

Designed using advanced CMOS sensor technology and precise optical systems; our Biometric Fingerprint Scanner delivers high quality fingerprint image. We are reliable Manufacturer, Supplier and Exporter of Biometric Fingerprint Scanner from New Delhi, India. These Biometric Fingerprint Scanners capture an almost un-distorted raw fingerprint image into PC in 100ms and is good for any fingerprint recognition application. The finger scanning window is a crown glass with a thickness of 14mm. It is much more reliable and robust compared to any other semiconductor type fingerprint sensor.

Futronic provides USB drivers and API for FS80 to capture a raw fingerprint image on the following platforms :

• Windows XP/2003, 32 bit and 64 bit.
• Windows Vista/2008, 32 bit and 64 bit.
• Windows 7, 32 bit and 64 bit.
• Linux with kernel 2.4 or higher (for both x86 and ARM9)
• Windows CE 5.0 and 6.0 (for both x86 and ARM9)
• MAC OS(version 10.5, 10.6 and 10.7, Intel CPU)

Specification :

• Fingerprint scanning window size is 16x24mm
• Image resolution is 480x320 pixel, 500 DPI
• Raw fingerprint image file size is 150K byte
• With Live Finger Detection (LFD) feature
• USB 2.0 compatible interface, plug and play device
• WHQL approved for Vista 32bit and 64bit
• With a 2M standard USB cable
• Small size, 45 x 63 x 26 mm
• Light weight, 120 gram
• Operation temperature: -10 to +55 Degree Celsius

Electrical Characteristics :

• Light source : Infrared LED
• Supply voltage : DC 4.5-5.5V via USB port

• Power consumption :

  • active <600mW(during scanning)
  • standby <200mW(when scanner is connected PC but no scanning)
  • sleep mode <11mW(activated by standard USB bus event only)
  • ESD contact - 8KV and air discharge - 16KV, no permanent damage
