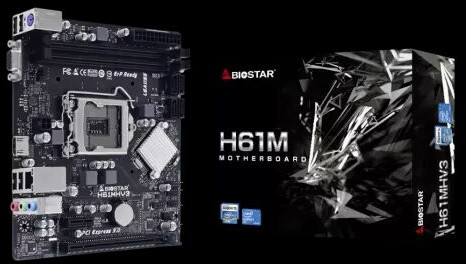

Biostar H61MHV3 DDR3 Motherboard For Intel 3rd | 2nd Gen

₹ 4,752 / Piece

ChipsetIntel H61
STORAGE4 x SATA II (3Gb/s) * Specifications vary by CPU types
REAR I/O1 x PS/2 Keyboard/Mouse 1 x VGA Port 1 x HDMI Port 4 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack
MEMORYSupports Dual Channel DDR3 1066/1333/1600 2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB Memory Each DIMM supports non-ECC 512MB/1/2/4/8 GB DDR3 module * DDR3 1600 memory module (depending on CPU)
Supply TypeRetailer
Preferred Buyer Location India only

Company Information

Ask for more detail from the seller

Report incorrect details

ChipsetIntel H61
USB8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
MEMORYSupports Dual Channel DDR3 1066/1333/1600 2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB Memory Each DIMM supports non-ECC 512MB/1/2/4/8 GB DDR3 module * DDR3 1600 memory module (depending on CPU)
EXPANSION SLOT1 x PCIe 2.0 x1 1 x PCIe 3.0 x16 Slot (x16 mode, depending on CPU) * Specifications vary by CPU types
INTEGRATED VIDEOBy CPU model
AUDIO CODECALC897 7.1 Channels, High Definition Audio
REAR I/O1 x PS/2 Keyboard/Mouse 1 x VGA Port 1 x HDMI Port 4 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack
INTERNAL I/O4 x SATA II (3Gb/s) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x In
STORAGE4 x SATA II (3Gb/s) * Specifications vary by CPU types
H/W MONITORINGCPU/System Temperature Monitoring CPU/System Fan Monitoring Smart/Manual CPU Fan Control System Voltage Monitoring
LANRealtek RTL8111H 10/100/1000 Mb/s auto negotiation, Half/Full duplex capability
CPU SUPPORTSupport Intel Core i7/i5/i3 processors and Intel Pentium processors/Intel Celeron processors in the LGA1155 package * Please refer to www.biostar.com.tw for CPU support list.
