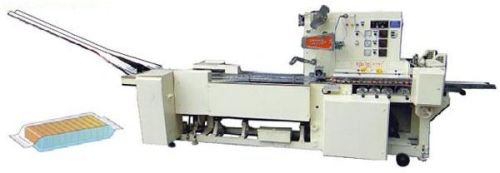

We cater to the demands of the biscuit manufacturers by offering them high-end Biscuit Packing Machine (Slug Pack). Our Biscuit Packing Machine (Slug Pack) is used for packing of biscuits without any pattern on the edges. For proper mechanical feeding of the biscuits in the center feeding chain, our Biscuit Packing Machine (Slug Pack) consists of two feeding chute unit. For packing biscuits in different shapes our Biscuit Packing Machine (Slug Pack) offers the high speed of 100-pkt/min.
Model number
Attributes
| Model | SVM/W/S/90 |
|---|---|
| Length | 15 FT |
| Height | 6 Feet |
| Width | 4 Feet |
| Approx Weight | 1 Ton (Approx) |
| Model | SVM/W/S/90 |
|---|---|
| Maximum product height | Ø60mm. |
| Minimum product height | Ø25mm. |
| Maximum width of the product | 60mm. |
| Minimum width of the product | 25mm. |
| Max./Min. stack Length | 200mm. / 55mm. |
| Maximum speed (Depending upon the product) | 100 Packets Per Min. |
| Power | 3 Phase | 440V with neutral 2 K.W. |
| Main Motor | 3 Phase 1 Phase 6 Lead | 2 H.P. - 1440 RPM - 1.5 K.W. |
| Frequency Drive | 230V 2H.P. 440V 2H.P. | Input - Single phase-3 Phase Output-3Phase |
| Heater | 50 Volts. 50 Volts. | 250 Watts for jaws 400 Watts, Disc Heater |
| Transformer | Input Ac 440 Amp / Output Ac 50 Amp | |
| Model | SVM/W/S/90 |
| Maximum width of the packing material | 250 mm. |
| Minimum width of the packing material | 140 mm.. |
| Maximum Reel Dia. | 12 Inch |
