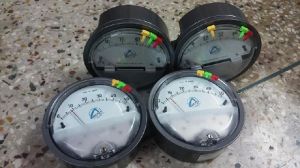

Aerosense Model ASG-250MM Differential Pressure Gauge Range 250 MM

Aerosense Model ASG-250MM Differential Pressure Gauge Range 250 MM
Model ASG-250 MM
Range 0-250 MM

Series ASG Differential Pressure Gage with adjustable bookmarks. Indicates Positive, Negative or Differential Pressure.

Series ASG Differential Pressure Gage with additional bookmark feature and a wide choice of ranges and models. It quickly indicates Air & non-combustible and compatible gases pressure - either positive, negative or differential.

Product Applications:

• Filter monitoring
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct, Room or Building Pressures
• Clean Room Positive Pressure Indication

• Service: Air and non-combustible, compatible gases (natural gas option available). Wetted Materials: Consult factory
• Housing: Die cast aluminum case and bezel with acrylic over(MP model has polycarbinate cover)
• Accuracy: ±2% of full scale (±3%on -0,-100 Pa,-125 Pa.l0MM and ±4% on -00, -60 Pa, -6MM ranges), throughout range at 70‘F (21.1‘C).
• Pressure Limits:-20 in Hg to 15 psig (-0.677 bar to 1.034 bar); MP option: 35 psig (2.41 bar); HP option: 80 psig (5.52 bar).
• Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gauges only. The blowout plug is not used on models above 180 inches of water pressure, medium or high pressure models, or on gauges which require an elastomer other than silicon for diaphragm.
• Temperature Limits: 20 to 140“F*(-6.67 to 60'C).*low Temperature models available as special option.
• Size: 4" (101.6 mm) diameter dial face
